Head-Exchangeable Drills-QD140-149-16-12D-CA
- item No : D140-149-16-12D-CA

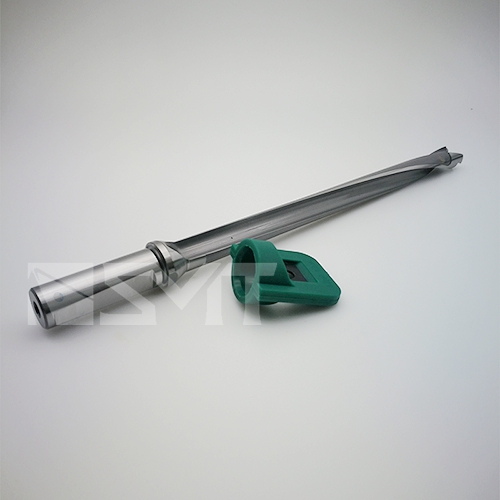

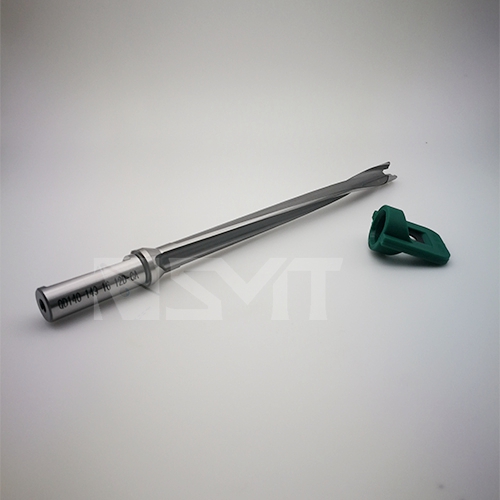

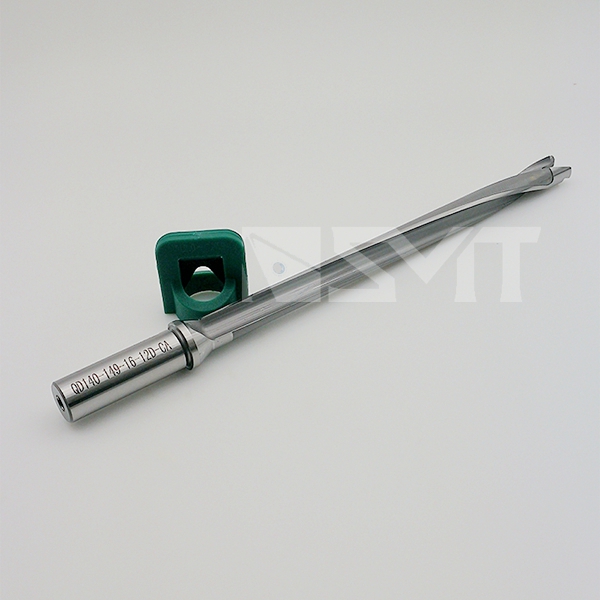

- Head Exchangeable Drill Body, D140-149-16-12D-CA, shank D16, 12xD, with internal coolant channel, for head size 14.0-14.9, for head type QD- RA,QD-RB, QD-F, QD-S1/A,QD-S2/A,and QD-C.
- Inquiry now
Detailed description

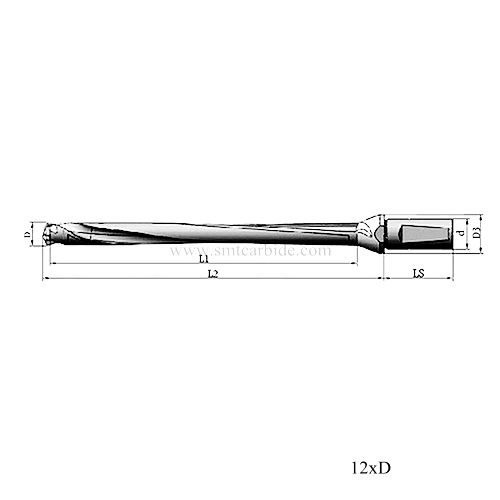

QD- drill Body-12xD
-L/D Ratio: 12xD
- Highly polished, with internal coolant holes.
- Qdrill bodies available with shank diameters 12mm,16mm, 20mm, 25mm and 32mm.

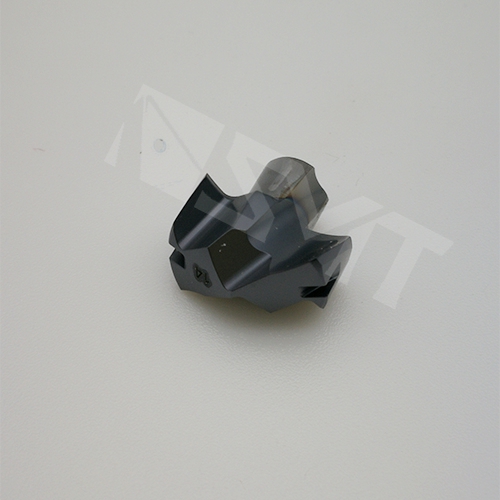

- 6 types of heads available: RA, RB, S1/A, S2/A, F and C.

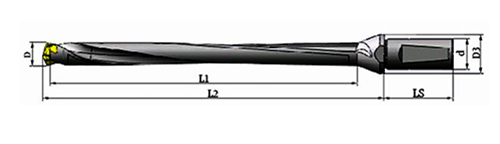

Designation
Head Dia.
(mm)
Dimensions(mm)
Wrench
d
D3
L1
Ls
D
QD120/129-16-12D-CA
12.0-12.9
16
20
162
48
11.6
12-16.9
QD130/139-16-12D-CA
13.0-13.9
16
20
175
48
12.6
QD140/149-16-12D-CA
14.0-14.9
16
20
187
48
13.6
QD150/159-20-12D-CA
15.0-15.9
20
20
200
50
14.6
QD160/169-20-12D-CA
16.0-16.9
20
20
212
50
15.6
QD170/179-20-12D-CA
17.0-17.9
20
20
225
50
16.6
17-20.9
QD180/189-25-12D-CA
18.0-18.9
25
32
237
56
17.6
QD190/199-25-12D-CA
19.0-19.9
25
32
250
56
18.6
QD200/209-25-12D-CA
20.0-20.9
25
32
262
56
19.6
QD210/219-25-12D-CA
21.0-21.9
25
32
275
56
20.6
21-26
QD220/229-25-12D-CA
22.0-22.9
25
32
287
56
21.6
QD230/239-32-12D-CA
23.0-23.9
32
42
300
60
22.6
QD240/249-32-12D-CA
24.0-24.9
32
42
313
60
23.6
QD250/260-32-12D-CA
25.0-26.0
32
42
325
60
24.6
