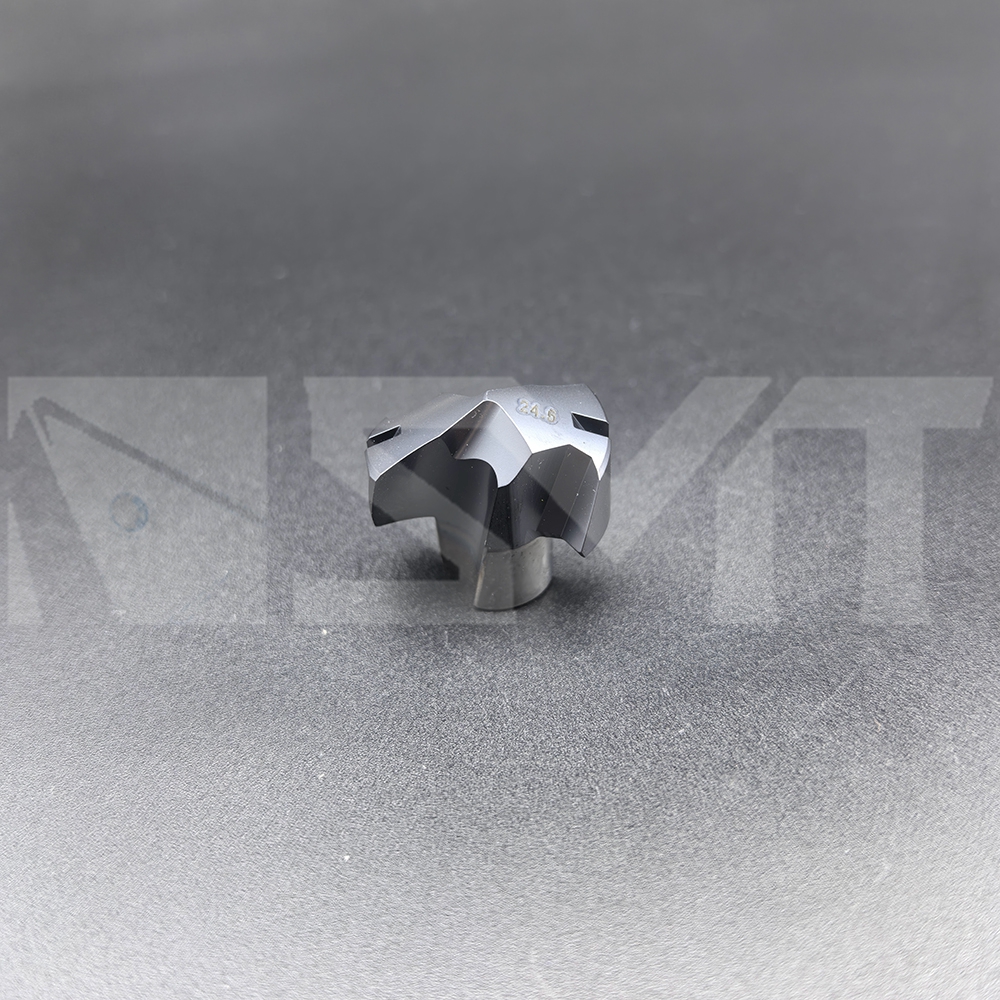

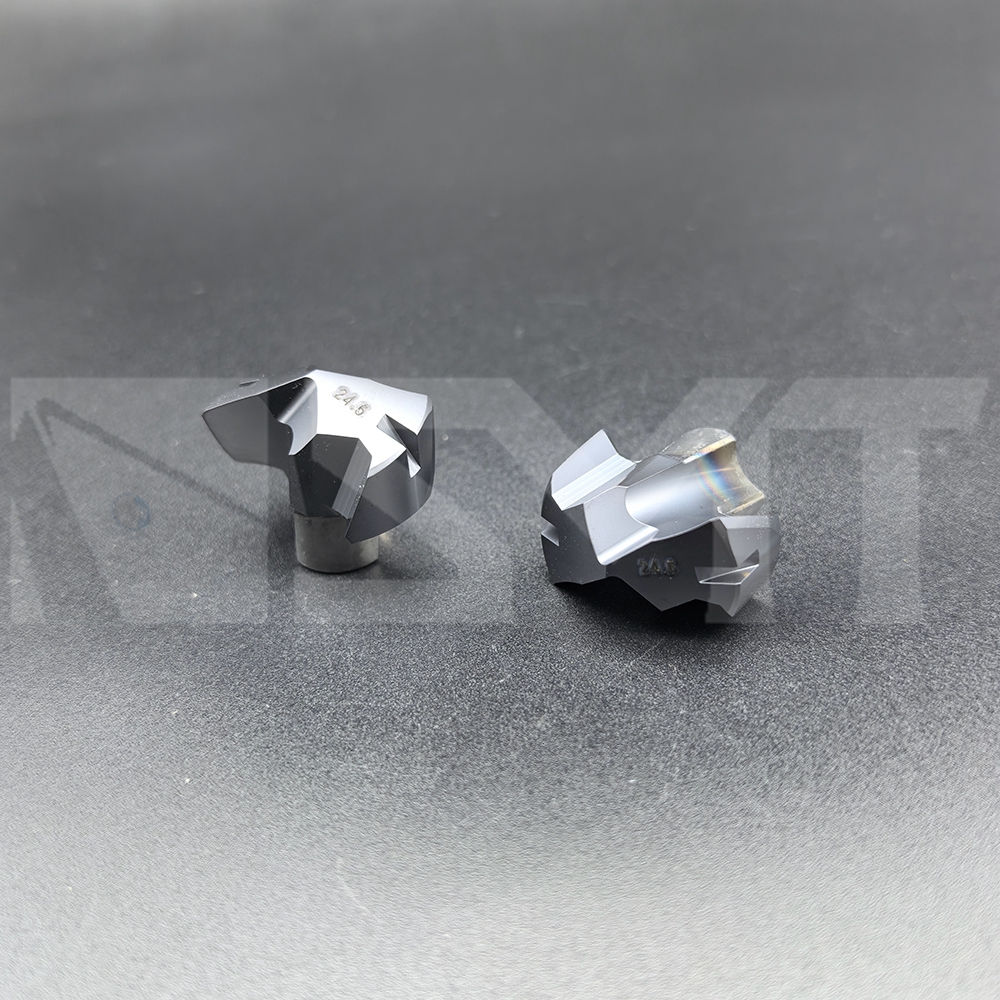

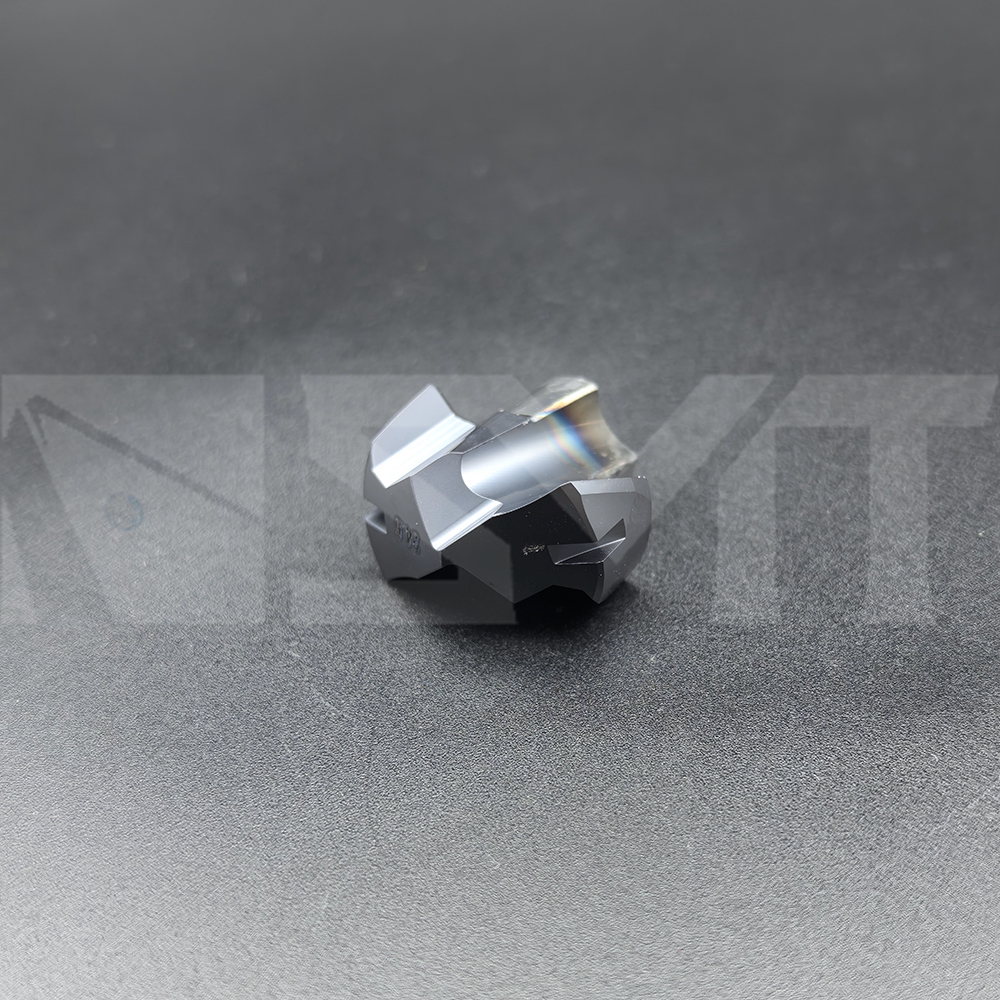

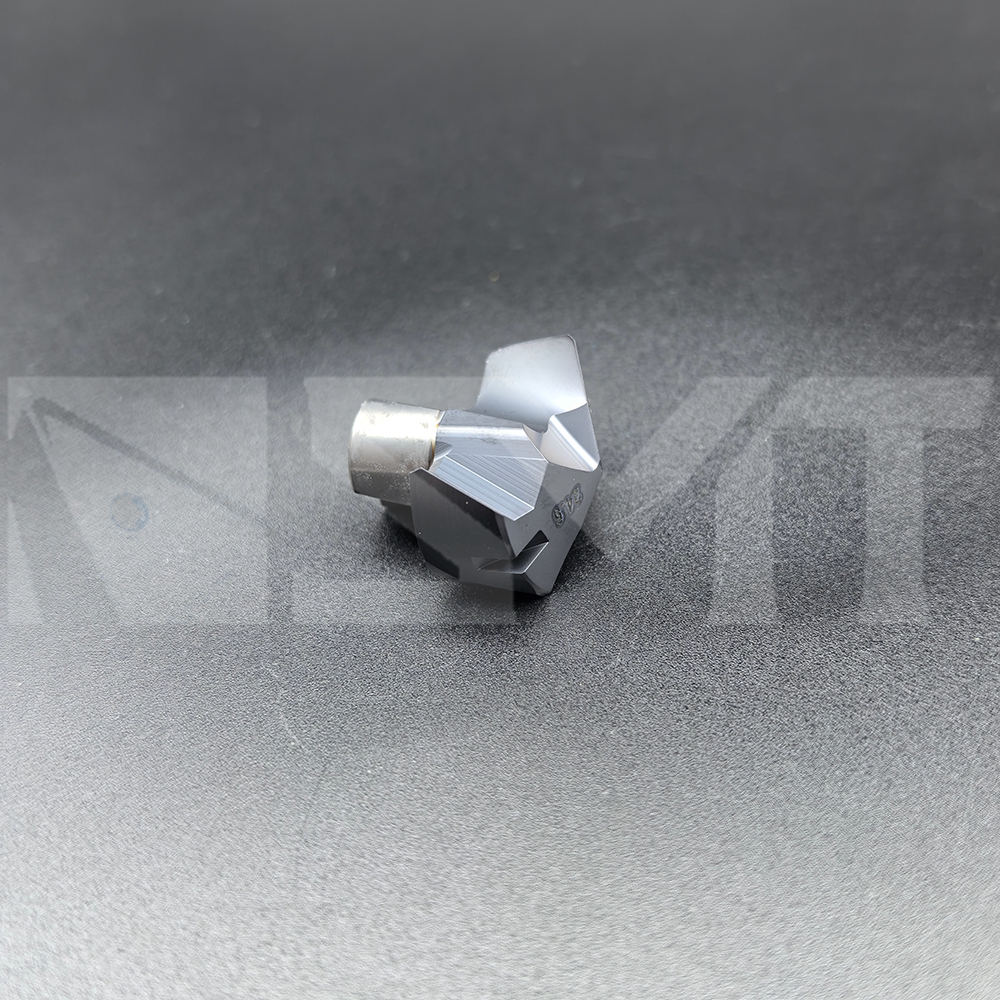

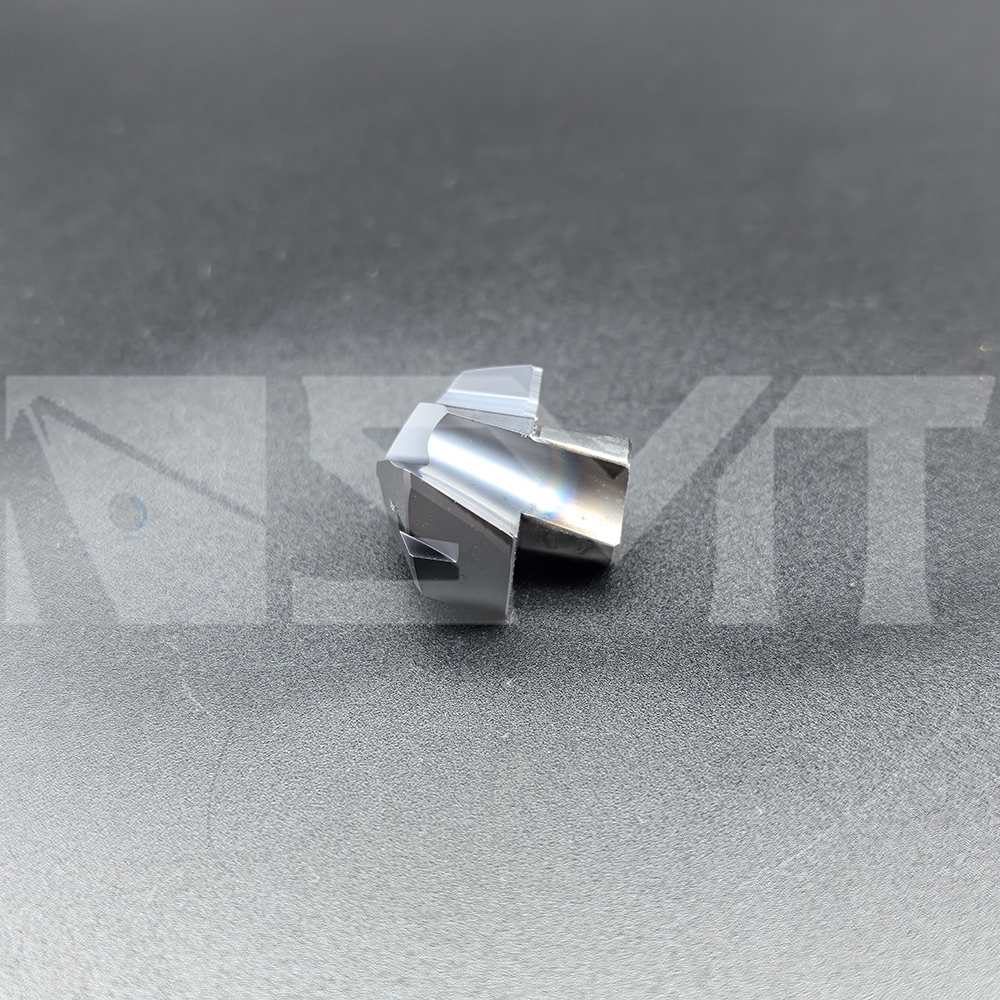

Drill Head-QD-245-S1/A
- item No : QD-245-S1/A
- Drill Head, QD-245-S1/A, Head style S1/A, D=24.5mm, PVD-TIALN coating, working on carbon steel and alloy steel.
- Inquiry now
Detailed description
Head Exchangeable Drill head--Self-locking
QD-S1/A
---Drill diameter 8-26 mm, available in 0.1mm increments
---Point angle: 140°
---Cutter bodies are available in 1.5xD,3xD,5xD,8xD and 12xD.
---Work on medium-high carbon steel, alloyed steel, stainless steel
---Micro-grain carbide grade, PVD-TIALN coating
|
Designation |
Dimensions(mm) |
Drill Body |
|
|
D |
t |
||
|
QD-240-S1/A |
24.0 |
13.9 |
QD240/249-32-D |
|
QD-241-S1/A |
24.1 |
13.9 |
|
|
QD-242-S1/A |
24.2 |
13.9 |
|
|
QD-243-S1/A |
24.3 |
13.9 |
|
|
QD-244-S1/A |
24.4 |
13.9 |
|
|
QD-245-S1/A |
24.5 |
13.9 |
|
|
QD-246-S1/A |
24.6 |
13.9 |
|
|
QD-247-S1/A |
24.7 |
13.9 |
|
|
QD-248-S1/A |
24.8 |
13.9 |
|
|
QD-249-S1/A |
24.9 |
13.9 |
|
