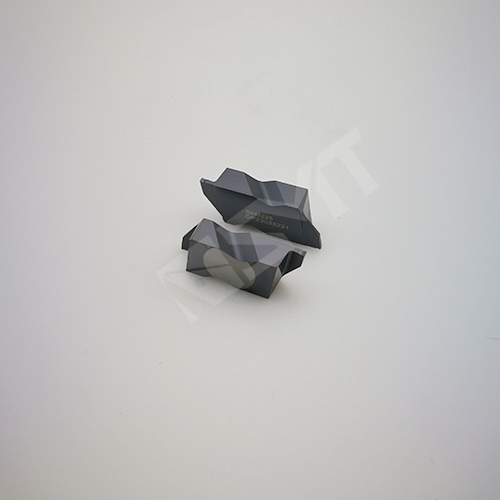

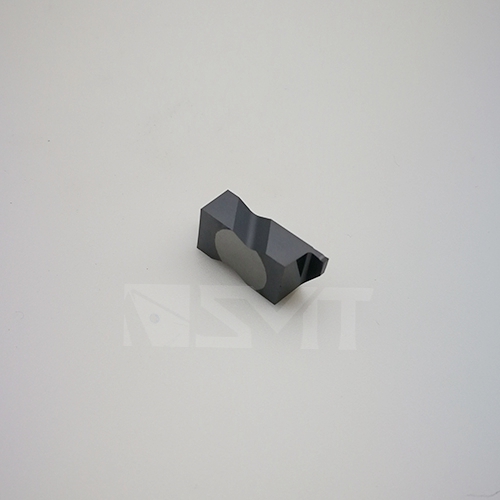

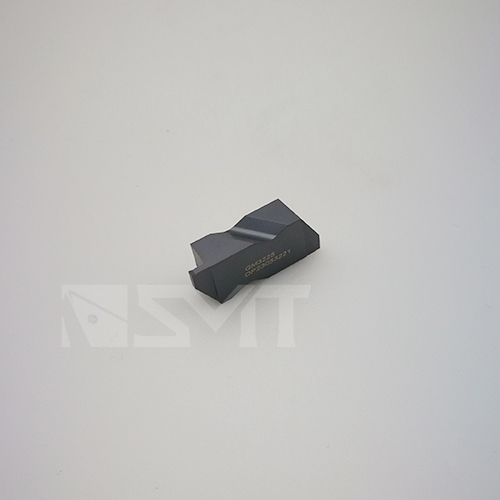

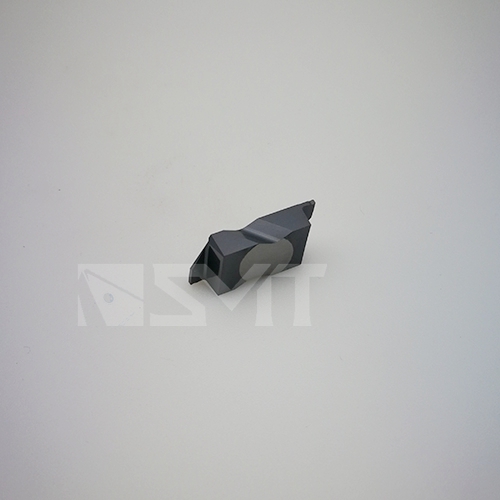

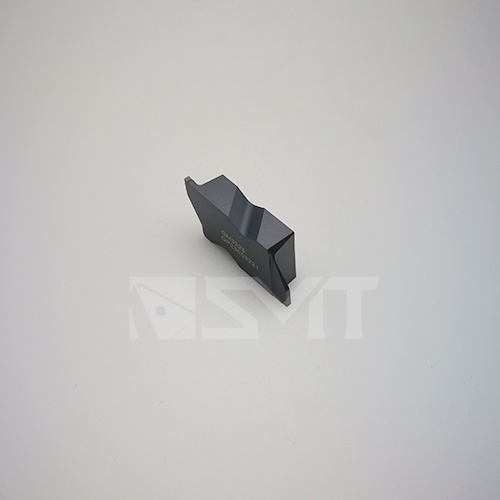

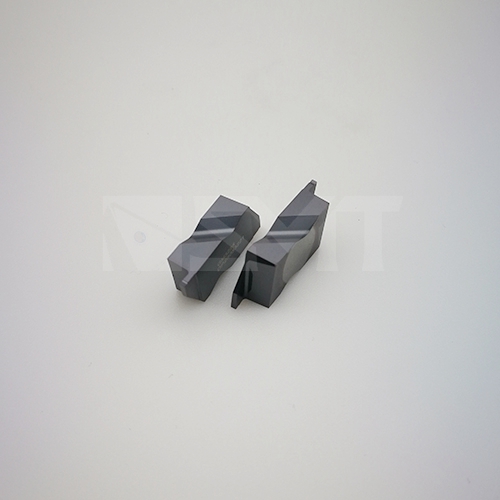

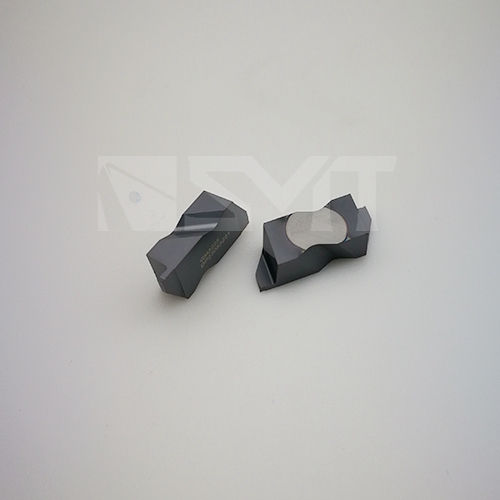

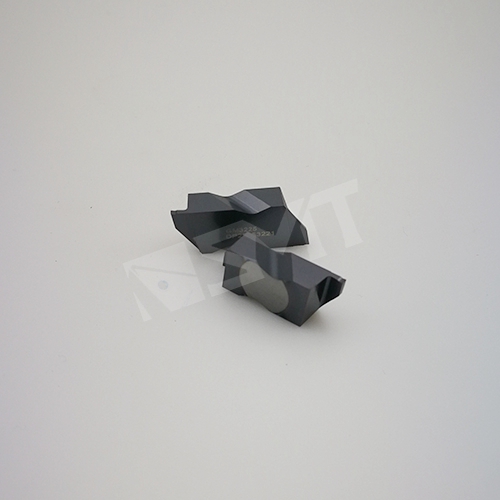

Grooving -Top-notch-NGP3M100R
Precision Grooving, Positive rake, double-sided, for a wide range of grooving appliction.
Designation
Dimensions(mm)
Insert
Size
Right hand
Left hand
W
R
T
S
M
D
NGP3031R
NGP3031 L
0.79
0.09
1.27
8.74
4.95
16.1
3
NGP3M100R
NGP3M100L
1.00
0.19
1.91
8.74
4.95
16.1
3
NGP3047R
NGP3047L
1.19
0.19
1.91
8.74
4.95
16.1
3
NGP3M150R
NGP3M150 L
1.50
0.19
2.39
8.74
4.95
16.1
3
NGP3062R
NGP3062L
1.58
0.19
2.39
8.74
4.95
16.1
3
/
NGP3070L
1.78
0.19
2.39
8.74
4.95
16.1
3
NGP3078R
NGP3078L
1.98
0.19
2.39
8.74
4.95
16.1
3
NGP3M200R
NGP3M200L
2.00
0.19
2.39
8.74
4.95
16.1
3
NGP3094R
NGP3094L
2.39
0.19
3.81
8.74
4.95
16.1
3
NGP3M250R
NGP3M250L
2.50
0.19
3.81
8.74
4.95
16.1
3
NGP3M300R
NGP3M300L
3.00
0.19
3.81
8.74
4.95
16.1
3
NGP3125R
NGP3125L
3.18
0.19
3.81
8.74
4.95
16.1
3
NGP3M350R
NGP3M350L
3.50
0.19
3.81
8.74
4.95
16.1
3
