  • Head-Exchangeable Drills-QD200-209-25-3D-CA

  • item No : QD200-209-25-3D-CA

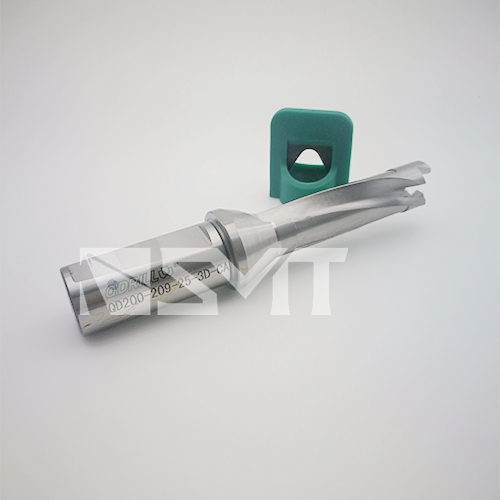

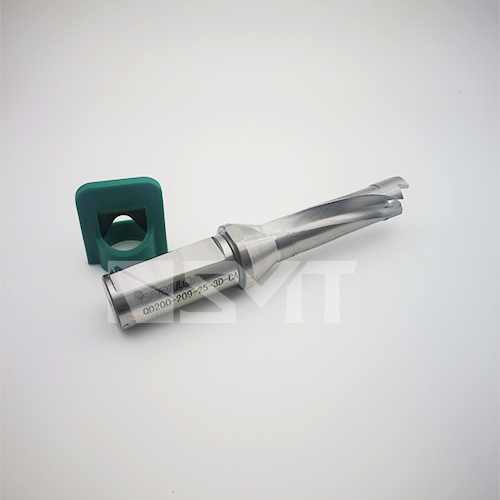

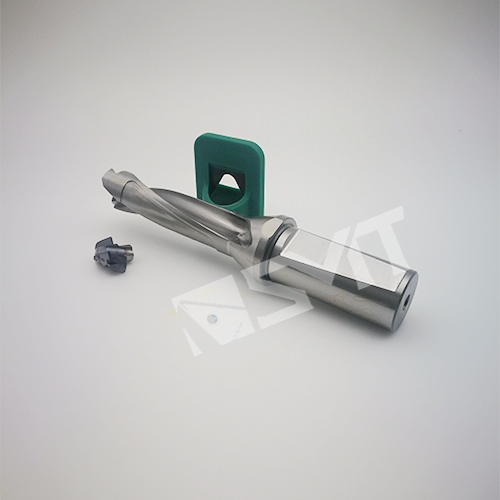

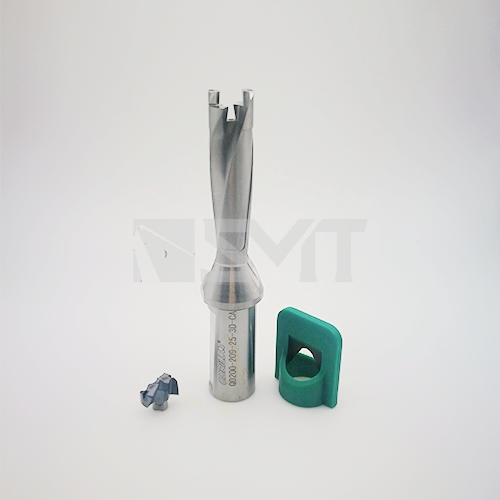

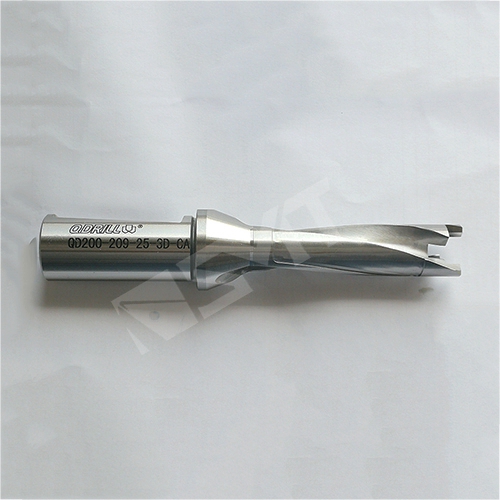

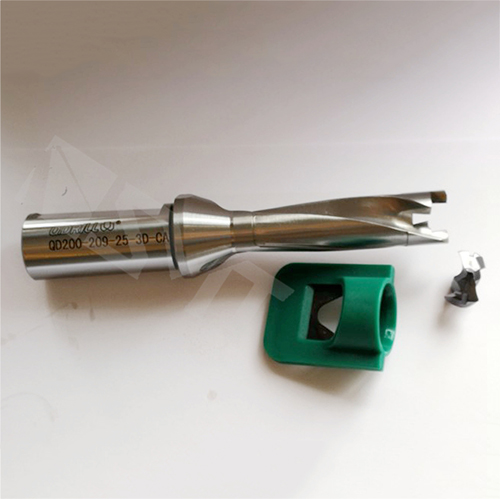

  • Head Exchangeable Drill Body, QD200-209-25-3D-CA, shank D25, 3xD, with internal coolant channel, for head size 20.0-20.9, for head type QD-RA,QD-RB, QD-F, QD-S1/A,QD-S2/A,and QD-C.
  • Inquiry now

Detailed description



           QD- drill Body-3xD

          -L/D Ratio: 3xD

         - Highly polished, with internal coolant holes.

         - Qdrill bodies available with shank diameters 12mm,16mm, 20mm, 25mm and  32mm.

          - 6 types of heads available: RA, RB, S1/A, S2/A, F and C.


Designation

Head Dia.

(mm)

Dimensions(mm)

Wrench

d

D3

L1

Ls

D

QD080/089-12-3D-CA

8.0-8.9

12

16

32

45

7.8

8-11.9

QD090/099-12-3D-CA

9.0-9.9

12

16

35

45

8.8

QD100/109-16-3D-CA

10.0-10.9

16

20

39

48

9.8

QD110/119-16-3D-CA

11.0-11.9

16

20

42

48

10.8

QD120/129-16-3D-CA

12.0-12.9

16

20

45

48

11.8

12-16.9

QD130/139-16-3D-CA

13-13.9.0

16

20

49

48

12.8

QD140/149-16-3D-CA

14.0-14.9

16

20

53

48

13.8

QD150/159-20-3D-CA

15.0-15.9

20

25

56

50

14.8

QD160/169-20-3D-CA

16.0-16.9

20

25

60

50

15.8

QD170/179-20-3D-CA

17.0-17.9

20

25

63

50

16.8

17-20.9

QD180/189-25-3D-CA

18.0-18.9

25

32

66

56

17.8

QD190/199-25-3D-CA

19.0-19.9

25

32

70

56

18.8

QD200/209-25-3D-CA

20.0-20.9

25

32

73

56

19.8

QD210/219-25-3D-CA

21.0-21.9

25

32

77

56

20.8

21-26

QD220/229-25-3D-CA

22.0-22.9

25

32

80

56

21.8

QD230/239-32-3D-CA

23.0-23.9

32

42

84

60

22.8

QD240/249-32-3D-CA

24.0-24.9

32

42

88

60

23.8

QD250/260-32-3D-CA

25.0-26.0

32

42

91

60

24.8
