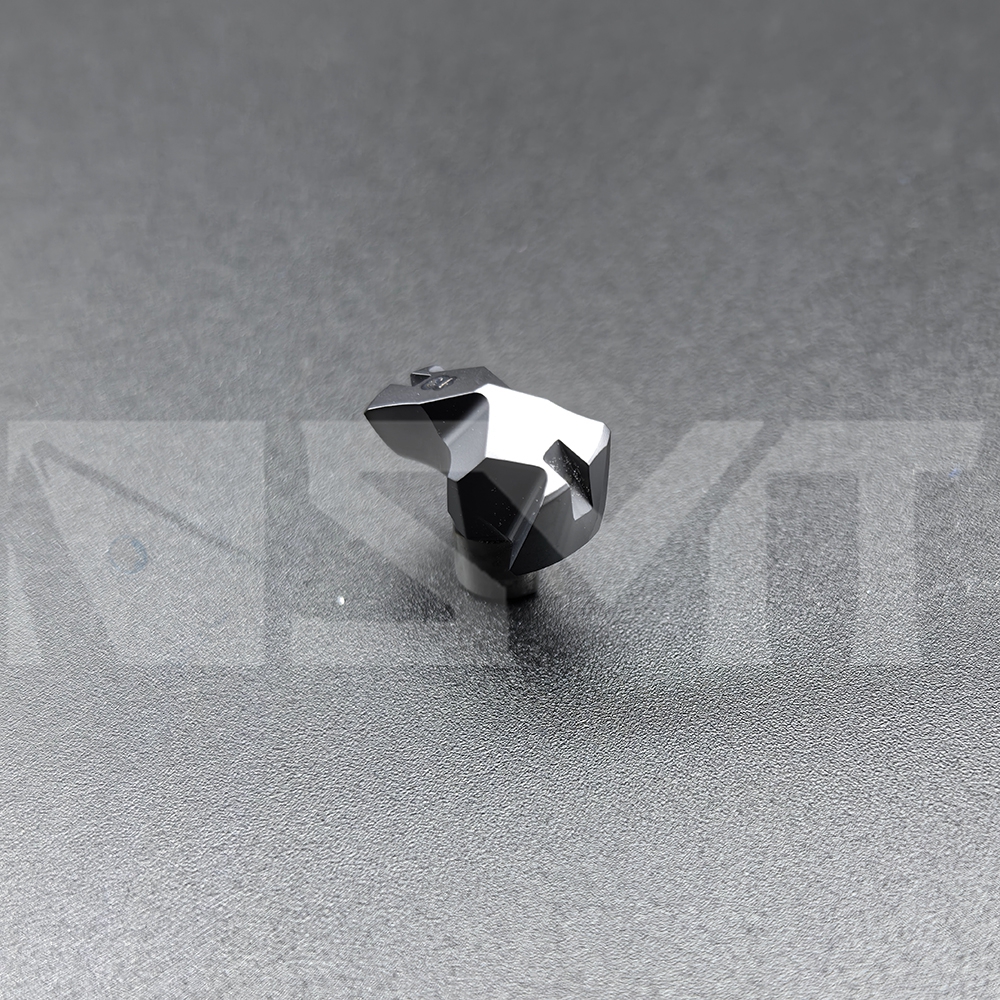

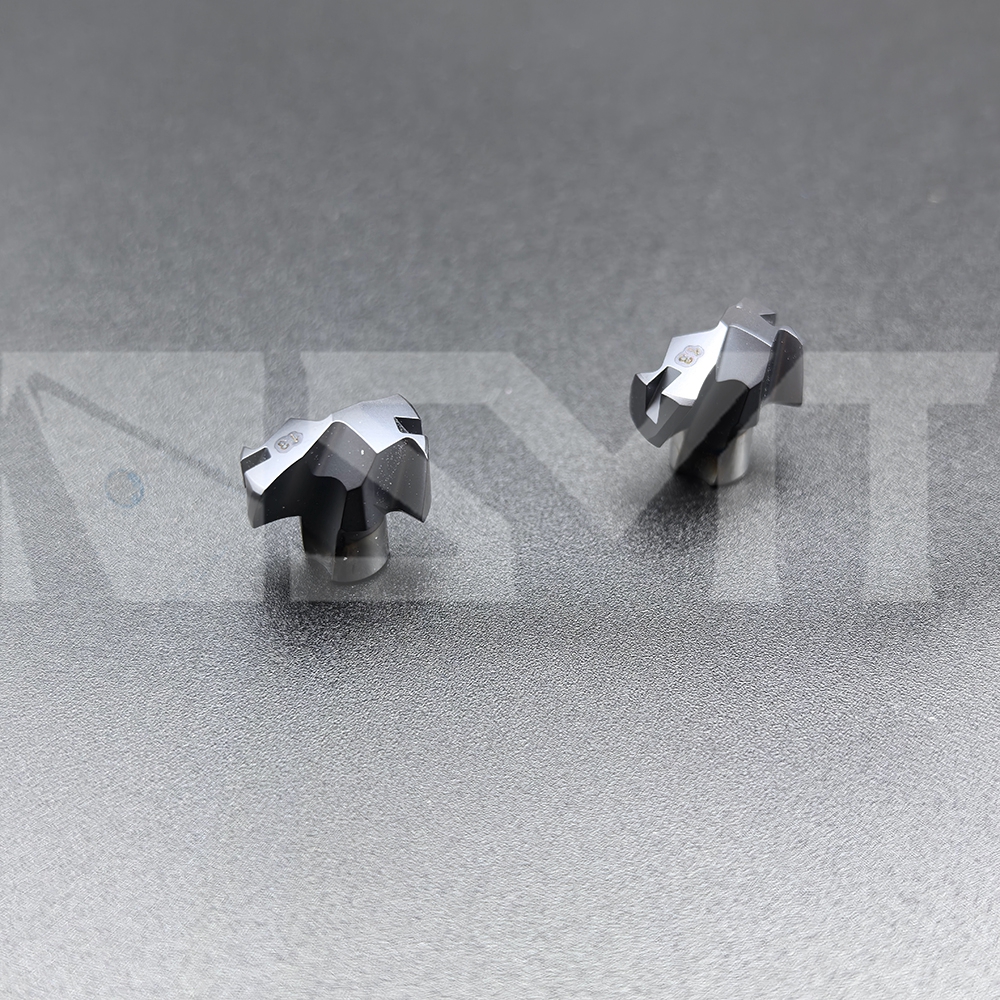

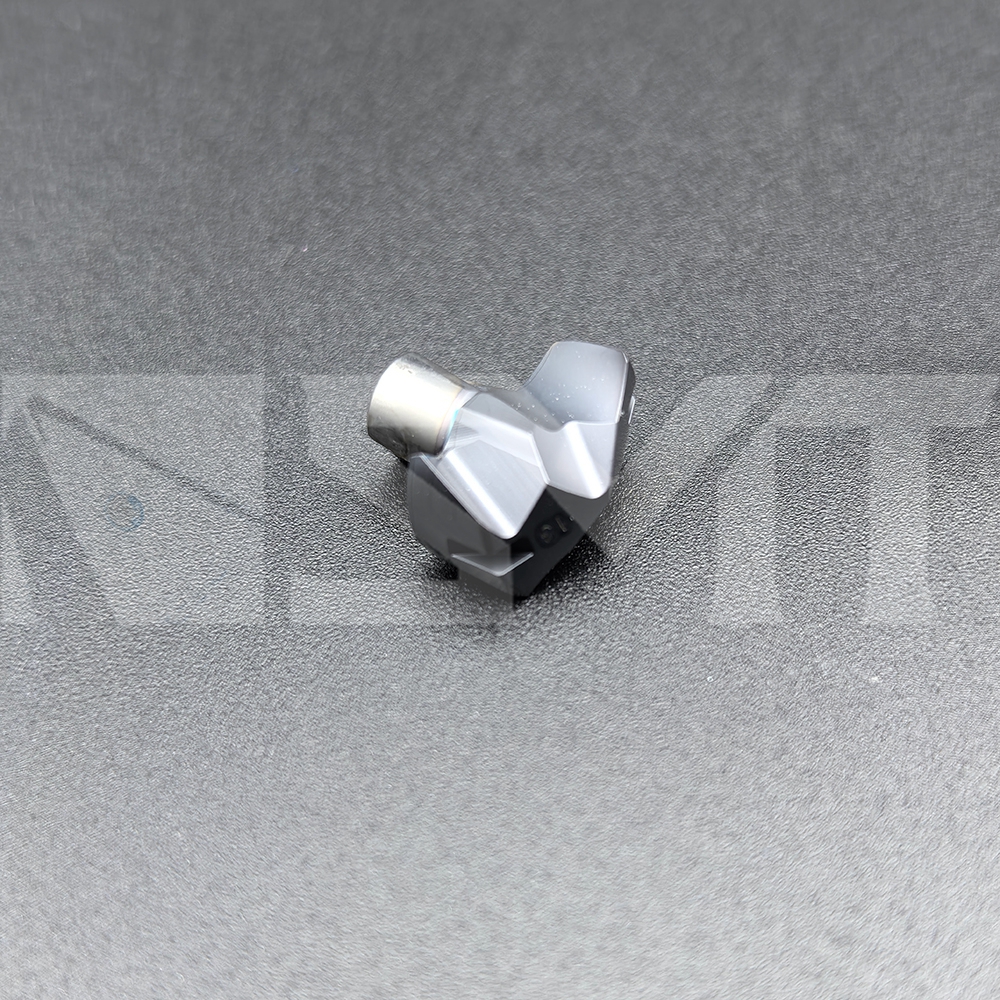

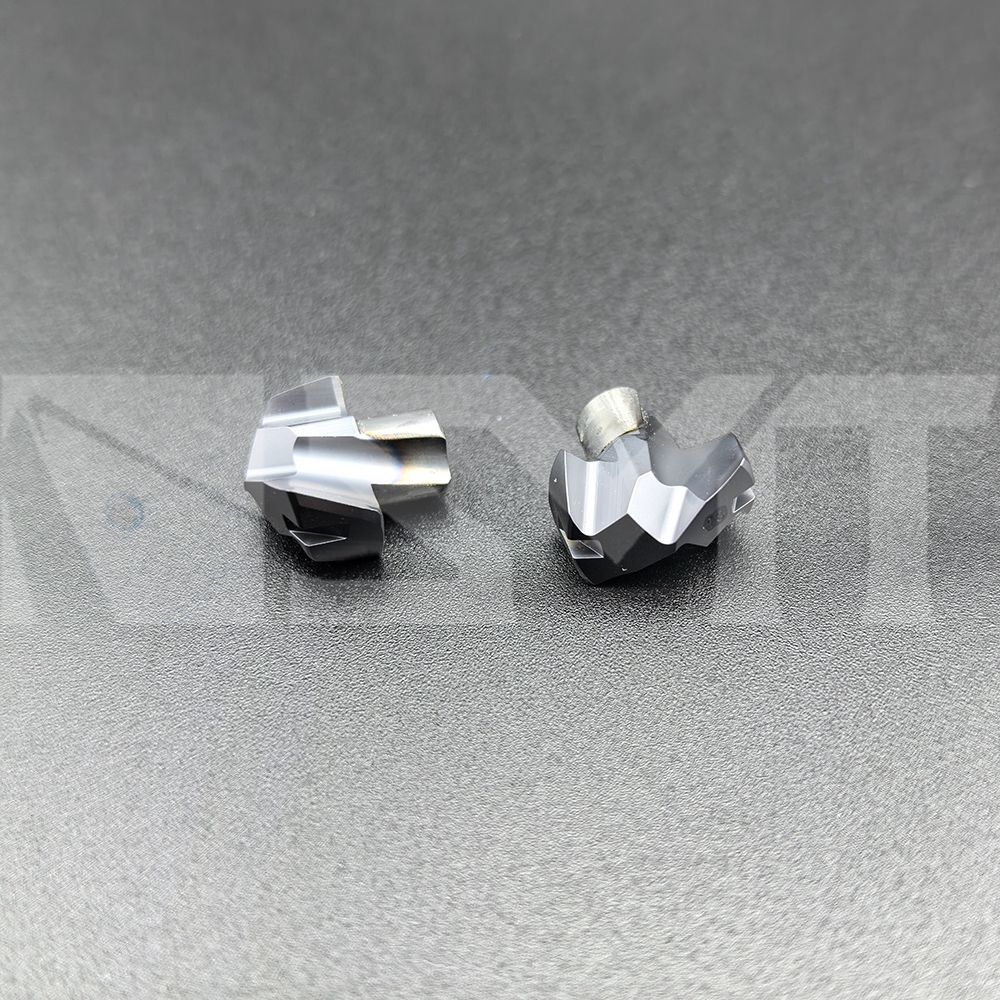

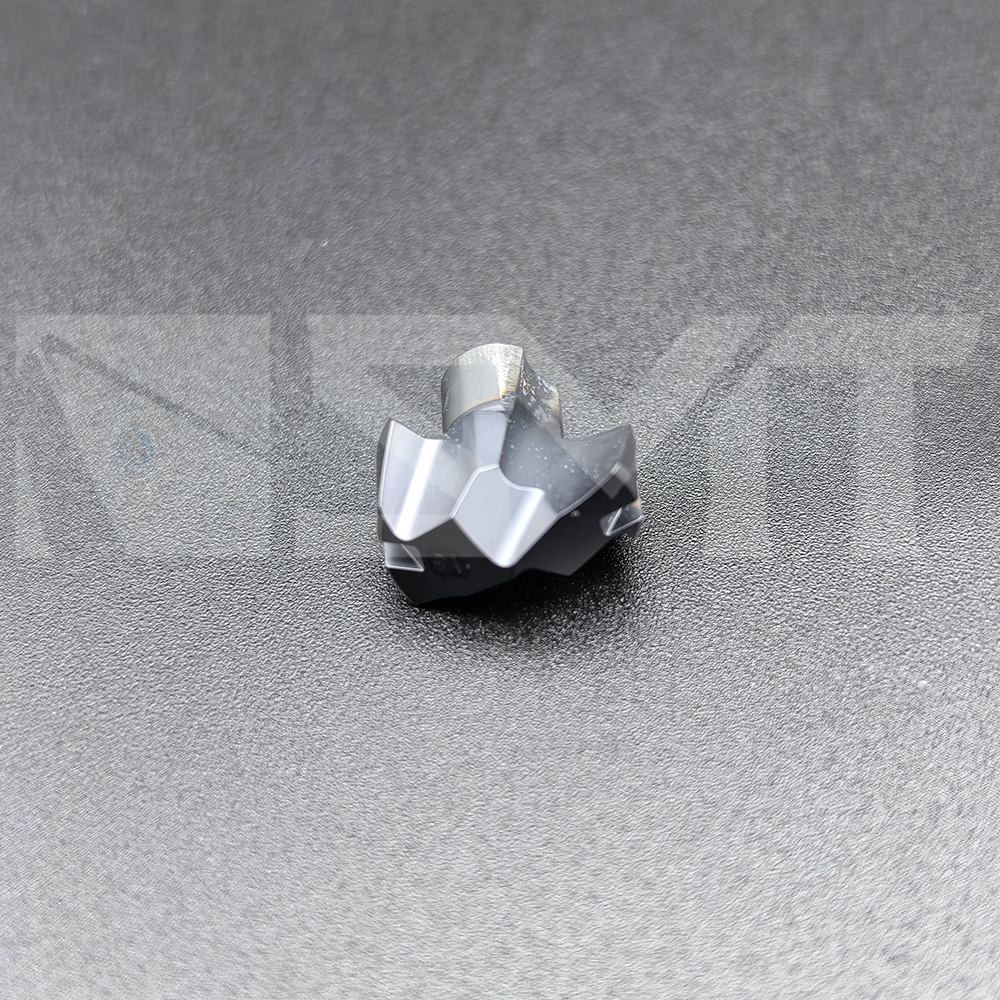

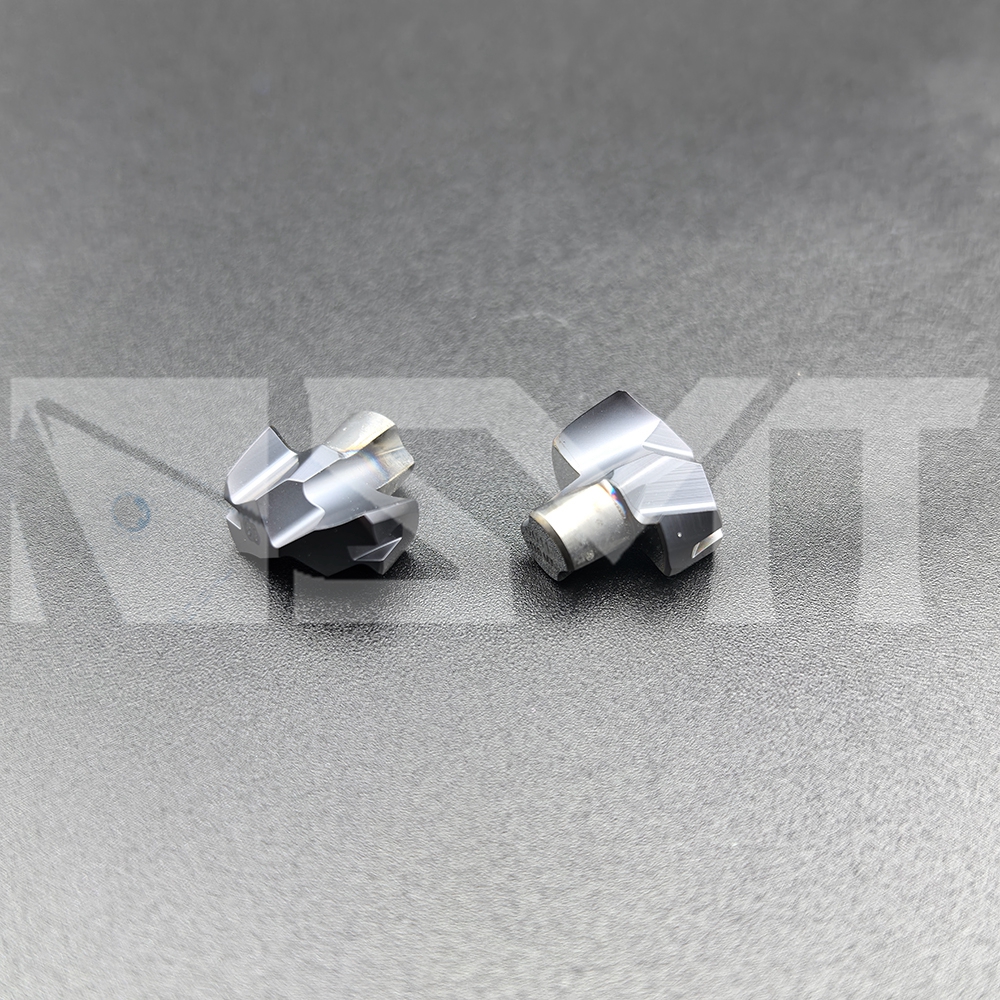

Head Exchangeable drills-QD-130-S1/A
- item No : QD-130-S1/A
- Drill head, QD-130-S1/A, Head style S1/A, D=13.0mm, PVD-TIALN coating, working on carbon steel and stainless steel.
- Inquiry now
Detailed description
Head Exchangeable Drill head--Self-locking
QD-S1/A
---Drill diameter 8-26 mm, available in 0.1mm increments
---Point angle: 140°
---Cutter bodies are available in 1.5xD,3xD,5xD,8xD and 12xD.
---Work on medium-high carbon steel, alloyed steel, stainless steel
---Micro-grain carbide grade, PVD-TIALN coating
|
Designation |
Dimensions(mm) |
Drill Body |
|
|
D |
t |
||
|
QD-130-S1/A |
13.0 |
7.6 |
QD130/139-16-D |
|
QD-131-S1/A |
13.1 |
7.6 |
|
|
QD-132-S1/A |
13.2 |
7.6 |
|
|
QD-133-S1/A |
13.3 |
7.6 |
|
|
QD-134-S1/A |
13.4 |
7.6 |
|
|
QD-135-S1/A |
13.5 |
7.6 |
|
|
QD-136-S1/A |
13.6 |
7.6 |
|
|
QD-137-S1/A |
13.7 |
7.6 |
|
|
QD-138-S1/A |
13.8 |
7.6 |
|
|
QD-139-S1/A |
13.9 |
7.6 |
|
