Deep Hole Drills-Gun drill-DJQ
- item No : Indexable Gun drill -DJQ
- Indexable Brazed gun drill-DJQ, from D14-32mm, with coated carbide insert and coated carbide guide pad
- Inquiry now
Detailed description

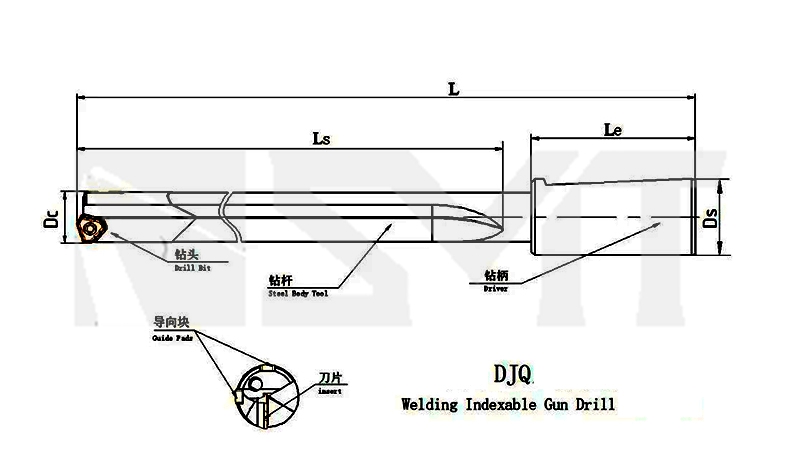

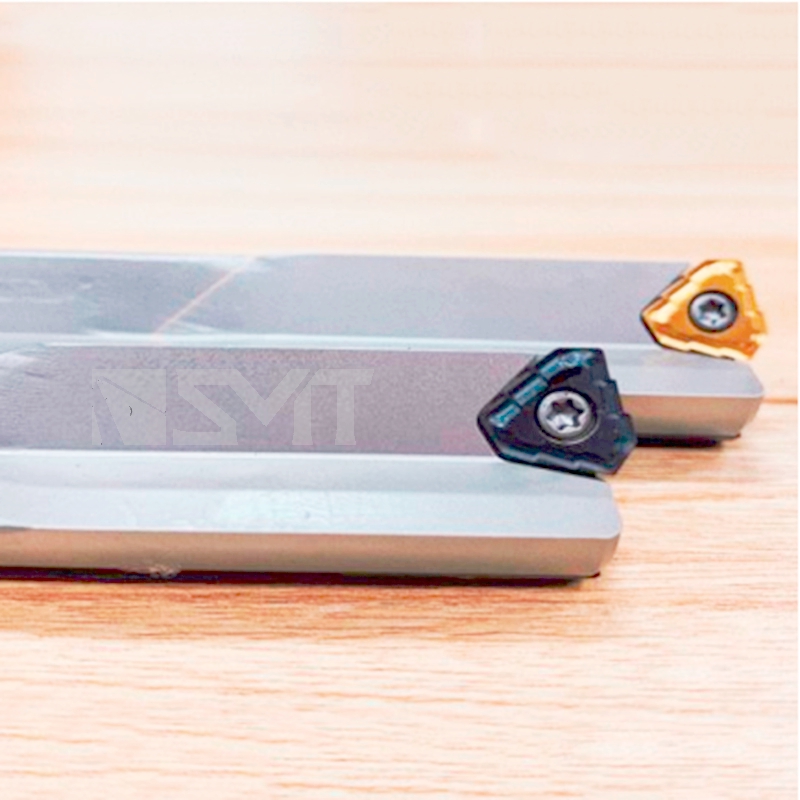

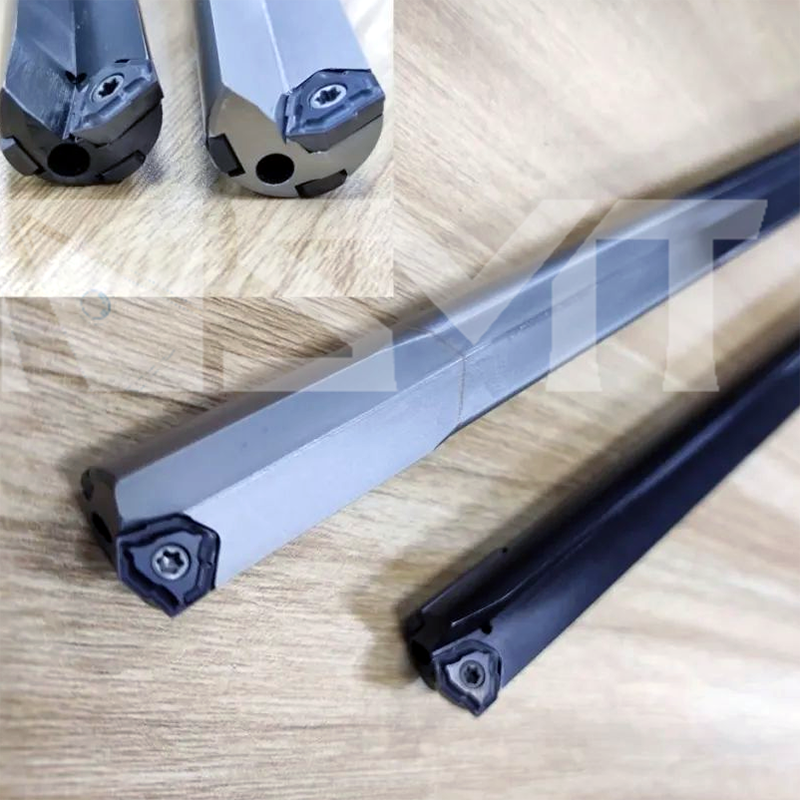

Indexable Gun drill -Brazed type-DJQ series-D14-32mm
-For small diameters.
-Can easily be applied to machining centers by using a pre-drilled hole for guidance.
-Requires high coolant pressure
|
Drill Diameter |
Inserts |
Guide Pad |
|
14.00-15.99 |

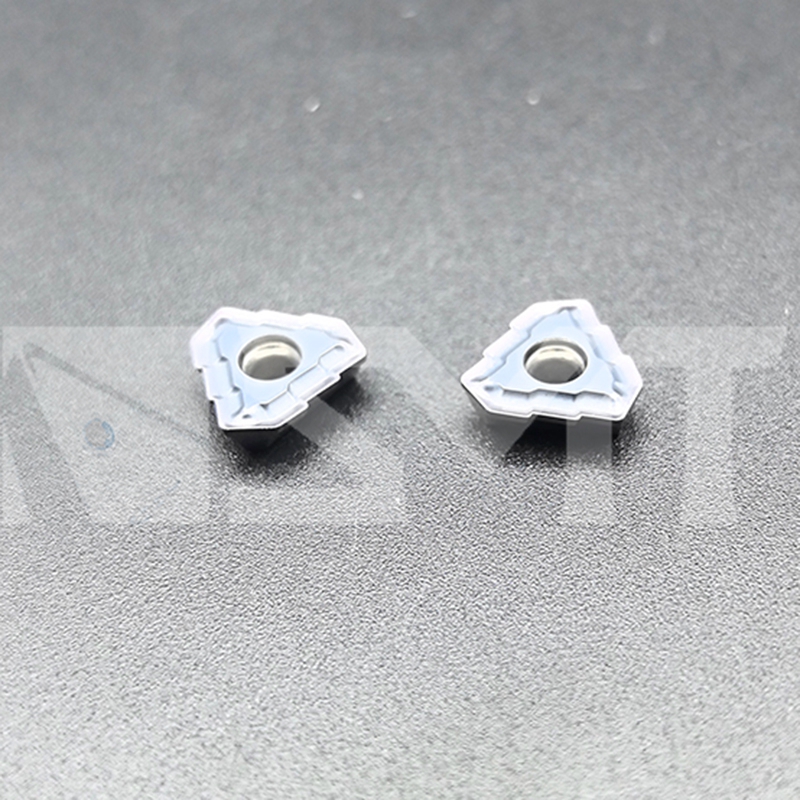

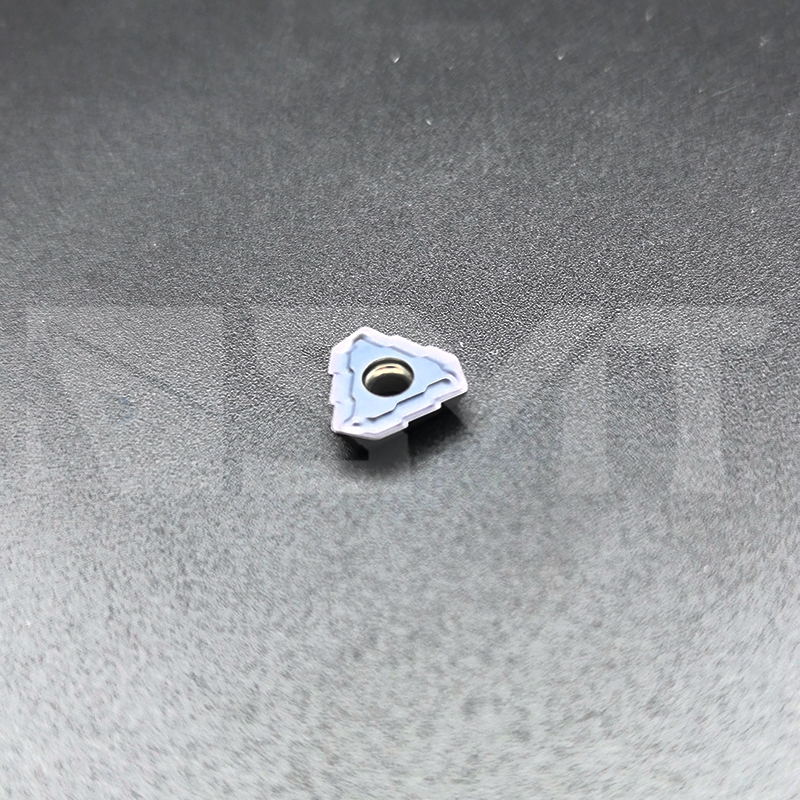

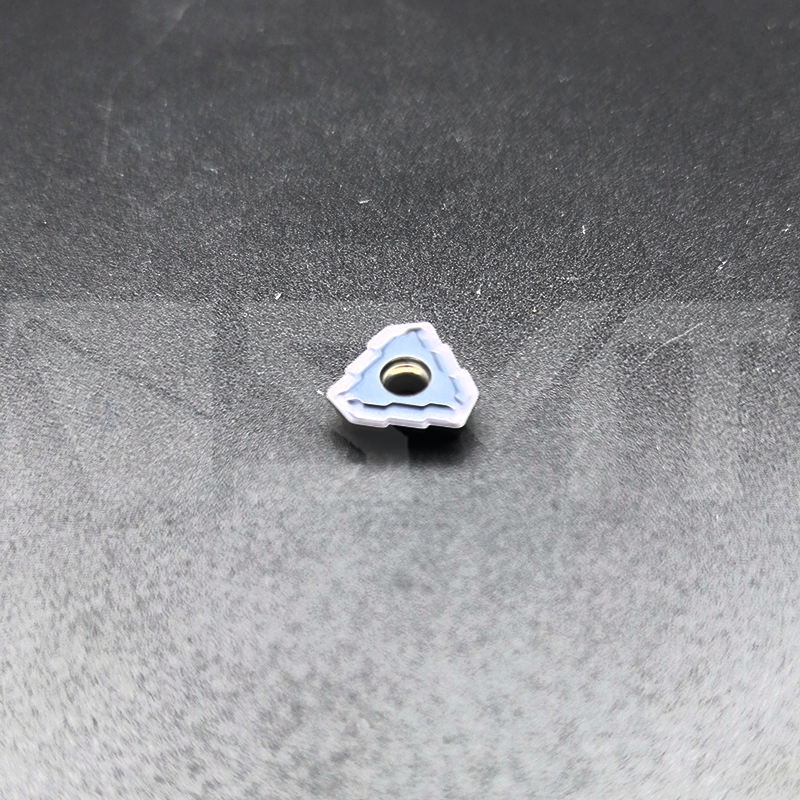

TOGT07 |

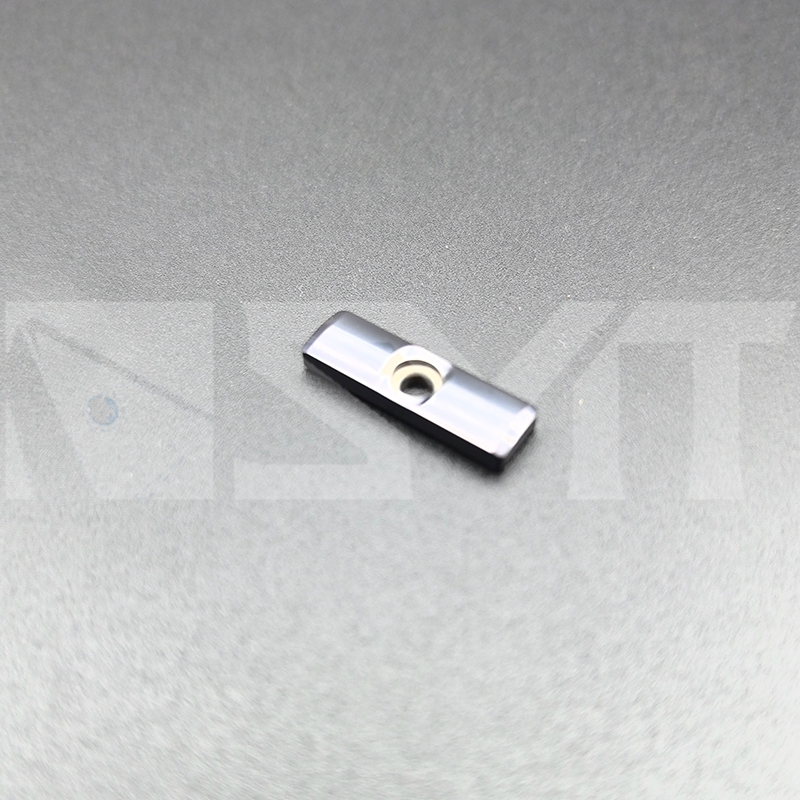

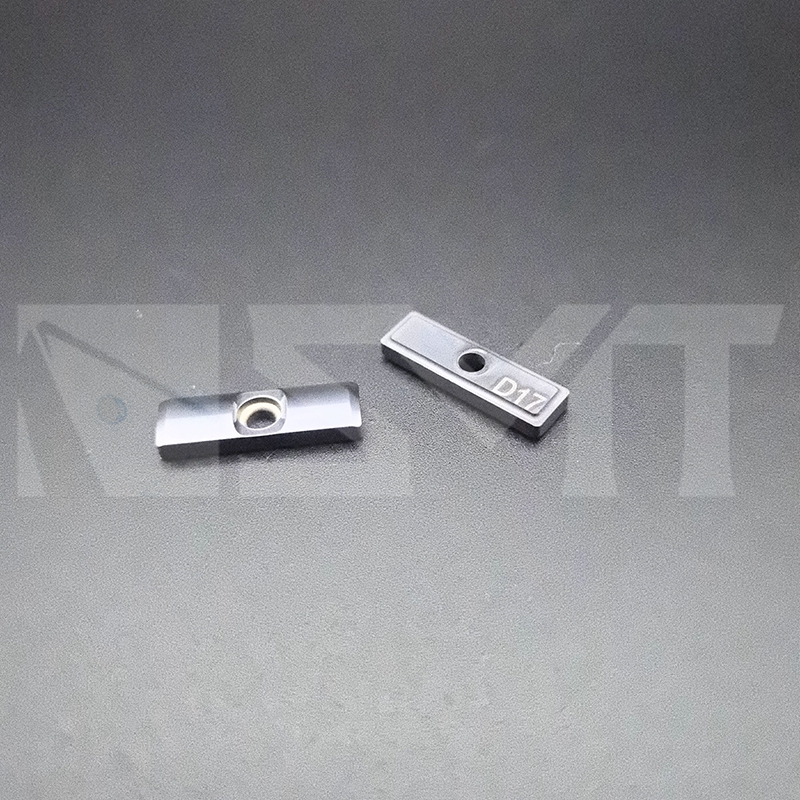

N4DQ05-D12 |
|
16.00-18.00 |
TOGT08 |
N4DQ05-D15 |
|
18.01-20.00 |
TOGT09 |
N4DQ06-D17 |
|
20.01-21.00 |
TOGT10 |
N4DQ06-D17 |
|
21.01-21.99 |
TOGT10 |
N4DQ06-D20 |
|
22.00-25.00 |
TOGT11 |
N4DQ06-D20 |
|
25.01-28.99 |
TOGT12 |
N4DQ06-D24 |
|
28.01-30.00 |
TOGT13 |
N4DQ06-D24 |
|
30.01-32.00 |
TOGT13 |
N4DQ07 |
Pls contact us for your requirements.
