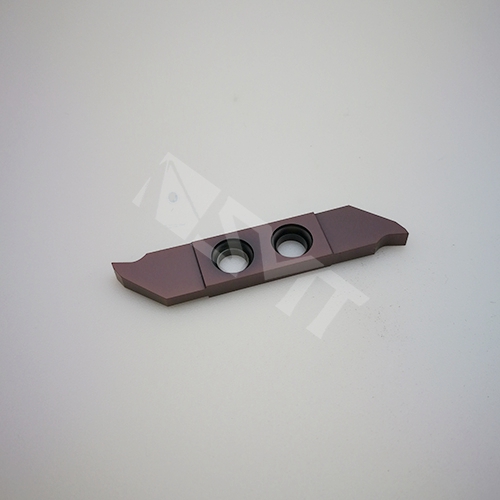

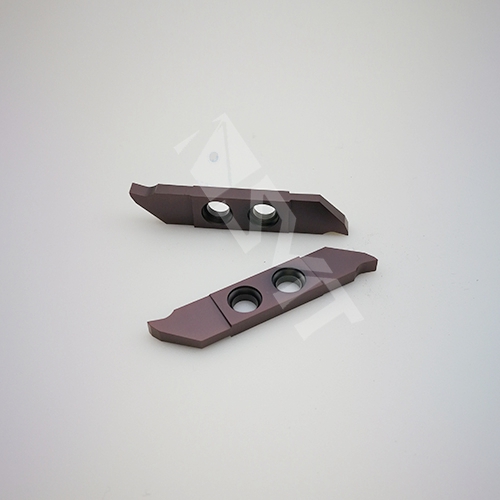

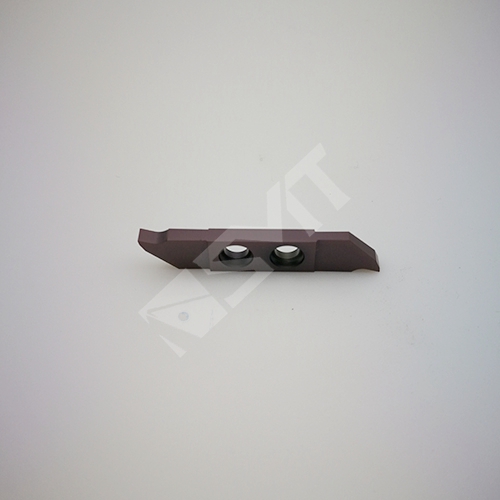

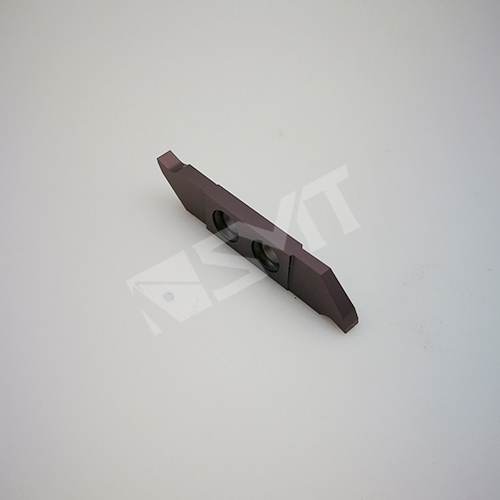

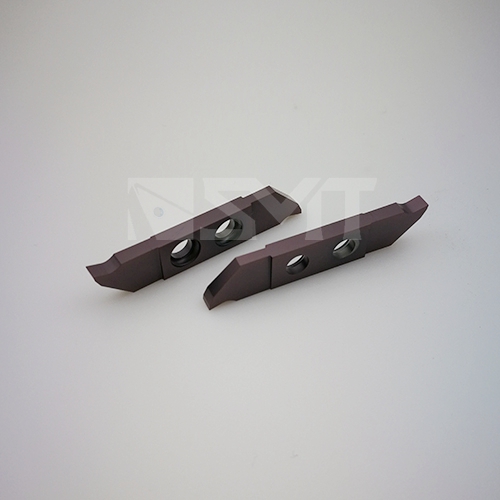

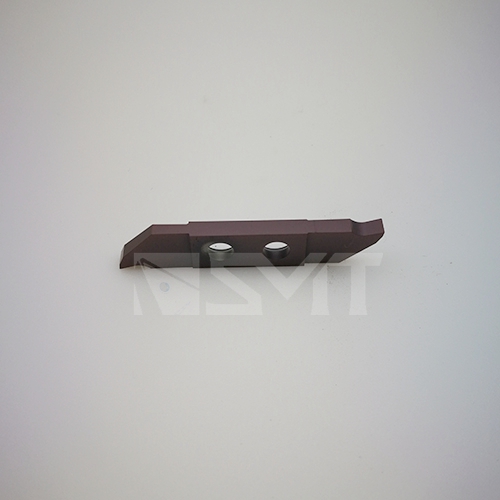

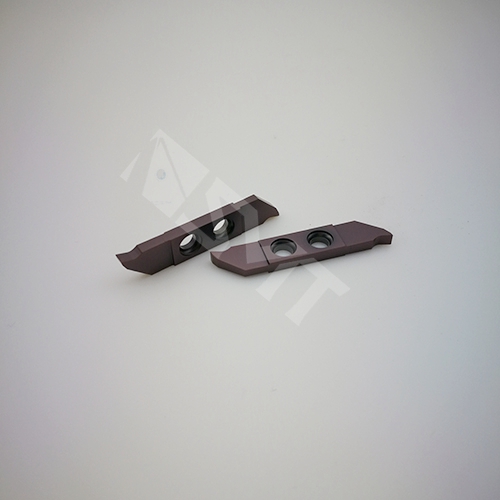

Parting and Grooving-THC42R300-CE

Designation

Dimensions

(mm)

Right hand

Left hand

W

B

r

α

IC

T

d

THC42R100-CE

THC42L100-CE

1.0

5

0.06

0º

7.94

3.07

4.35

THC42R150-CE

THC42L150-CE

1.5

8.5

0.06

0º

7.94

3.07

4.35

THC42R200-CE

THC42L200-CE

2.0

11.5

0.1

0º

7.94

3.07

4.35

THC42R250-CE

THC42L250-CE

2.5

11.5

0.1

0º

7.94

3.07

4.35

THC42R300-CE

THC42L300-CE

3.0

11.5

0.2

0º

7.94

3.07

4.35

THC42R340-CE

THC42L340-CE

3.4

11.5

0.2

0º

7.94

3.47

4.35

THC42R100-CE15R

THC42L100-CE15R

1.0

5

0.06

15º

7.94

3.07

4.35

THC42R150-CE15R

THC42L150-CE15R

1.5

8.5

0.06

15º

7.94

3.07

4.35

THC42R200-CE15R

THC42L200-CE15R

2.0

11.5

0.1

15º

7.94

3.07

4.35

THC42R250-CE15R

THC42L250-CE15R

2.5

11.5

0.1

15º

7.94

3.07

4.35

THC42R300-CE15R

THC42L300-CE15R

3.0

11.5

0.2

15º

7.94

3.07

4.35

THC42R340-CE15R

THC42L340-CE15R

3.4

11.5

0.2

15º

7.94

3.47

4.35
