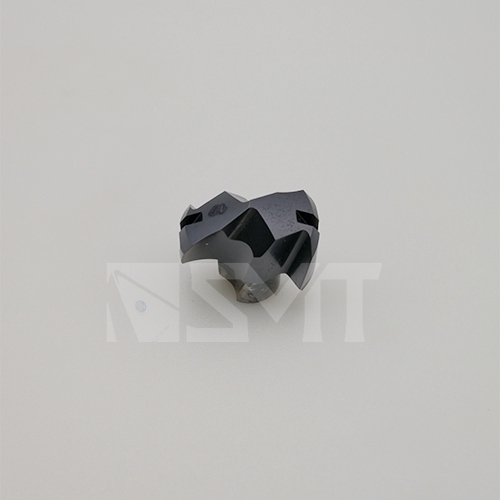

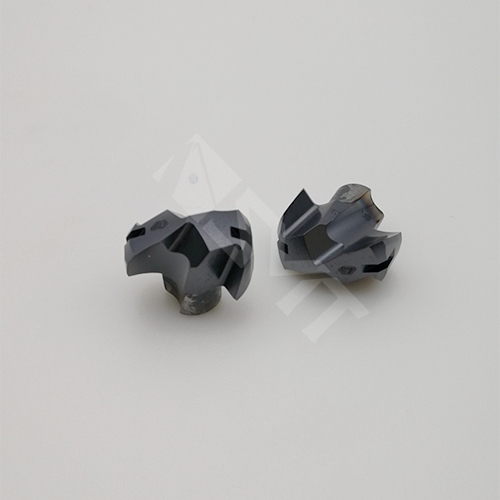

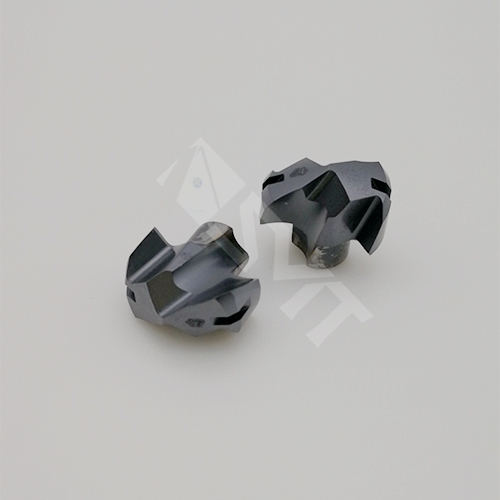

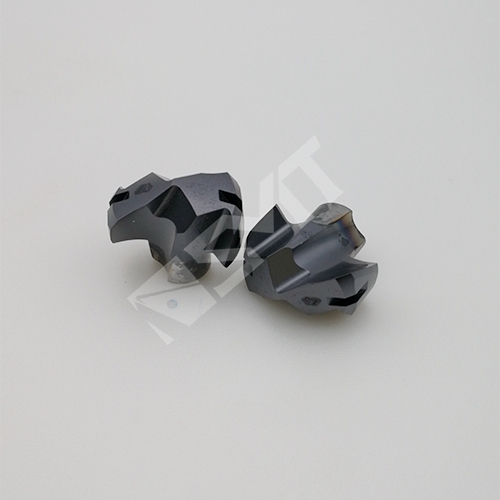

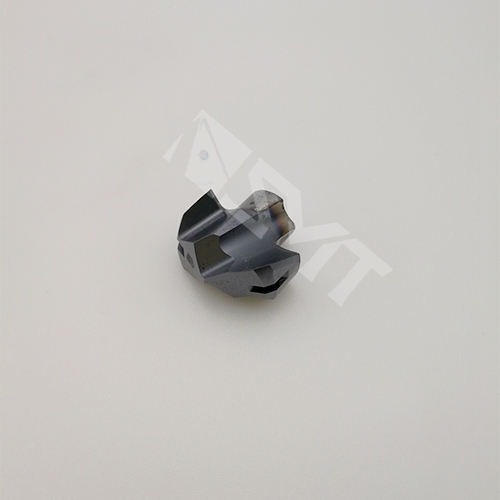

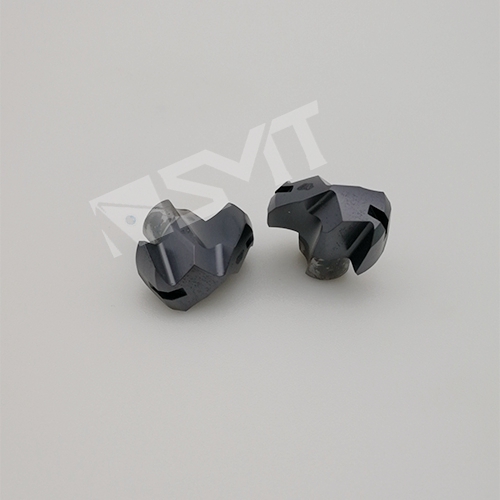

Head Exchangeable drills-QD-170-S2/A
Head Exchangeable drills-QD-170-S2/A Head Exchangeable drills-QD-170-S2/A Head Exchangeable drills-QD-170-S2/A Head Exchangeable drills-QD-170-S2/A Head Exchangeable drills-QD-170-S2/A Head Exchangeable drills-QD-170-S2/A

  • Head Exchangeable drills-QD-170-S2/A

  • item No : QD-170-S2/A
  • Head Exchangeable drills, QD-170-S2/A, Drill head style-S2/A, Dia 17.0mm, PVD -TIALN for carbon steel.
  • Inquiry now

Detailed description


         Head Exchangeable Drill head

         QD-S2/A

  • Drill diameter 8-26 mm, available in 0.1mm increments
  • Point angle: 140°
  • Cutter bodies are available in 1.5xD,3xD,5xD,8xD and 12xD
  • Work on  Grey cast iron and nodular cast iron.
  • Micro-grain carbide grade, PVD-TIALN coating

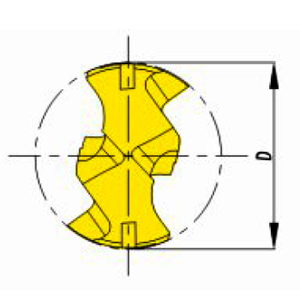

DESIGNATIONS

DIMENSIONS(mm)

Drill Body

D

t

QD-170-S2/A

17.0

9.9

QD170/179-20-xD-CA

QD-171-S2/A

17.1

9.9

QD-172-S2/A

17.2

9.9

QD-173-S2/A

17.3

9.9

QD-174-S2/A

17.4

9.9

QD-175-S2/A

17.5

9.9

QD-176-S2/A

17.6

9.9

QD-177-S2/A

17.7

9.9

QD-178-S2/A

17.8

9.9

QD-179-S2/A

17.9

9.9
