Head-Exchangeable Drills-QD230-239-32-5D-CA
- item No : QD230-239-32-5D-CA

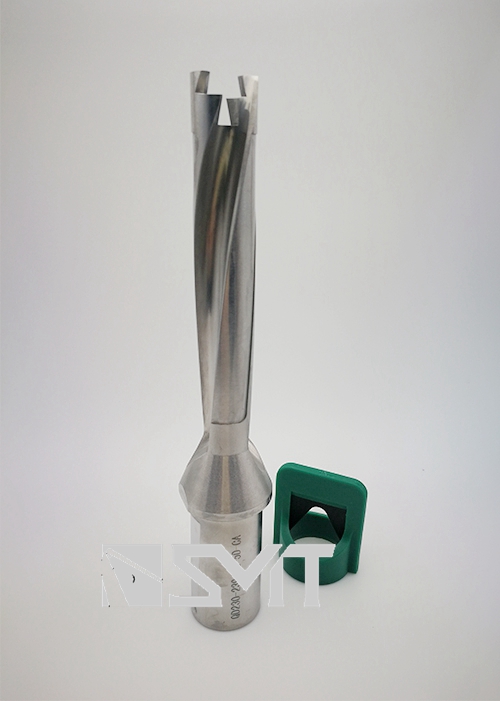

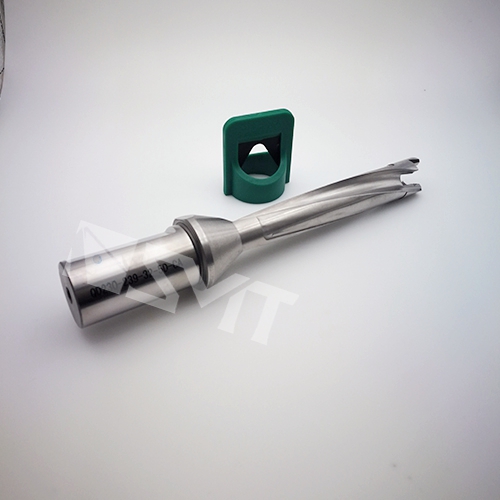

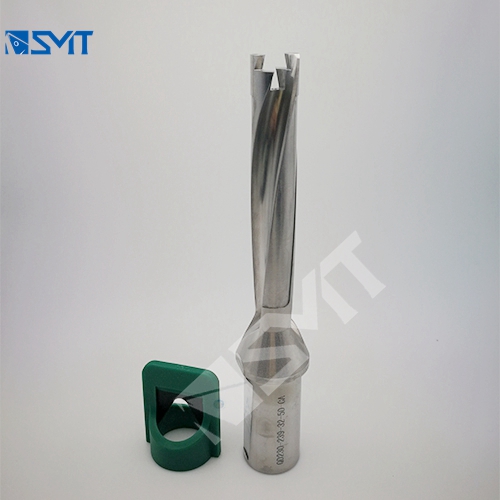

- Head Exchangeable Drill Body, QD230-239-32-5D-CA, shank D32, 5xD, with internal coolant channel, for head size 23.0-23.9, for head type QD- RA,QD-RB, QD-F, QD-S1/A,QD-S2/A,and QD-C.
- Inquiry now
Detailed description
QD- drill Body-5xD
L/D Ratio: 5xD
Highly polished, with internal coolant holes.
Qdrill bodies available with shank diameters 12mm,16mm, 20mm, 25mm and 32mm.

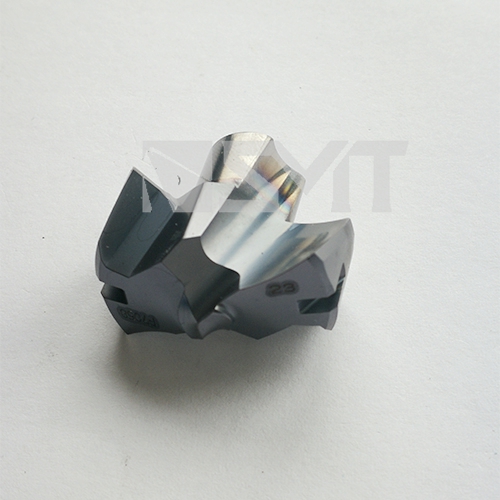

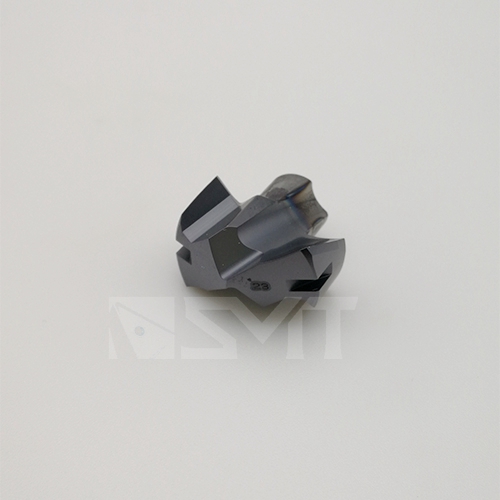

6 types of heads available: RA, RB, S1/A, S2/A, F and C
|

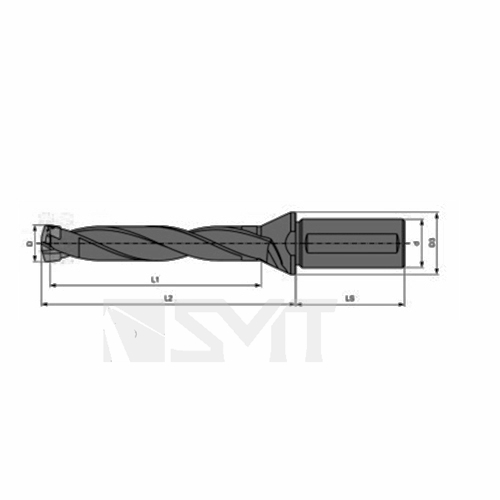

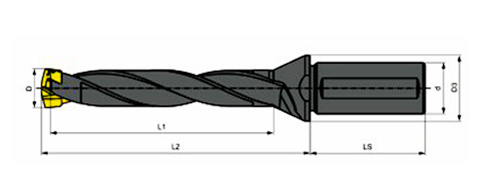

Designation |
Head Dia. (mm) |
Dimensions(mm) |
Wrench |
||||
|
d |
D3 |
L1 |
Ls |
D |
|||
|
QD080/089-12-5D-CA |
8.0-8.9 |
12 |
16 |
50 |
45 |
7.8 |
8-11.9 |
|
QD090/099-12-5D-CA |
9.0-9.9 |
12 |
16 |
55 |
45 |
8.8 |
|
|
QD100/109-16-5D-CA |
10.0-10.9 |
16 |
20 |
60 |
48 |
9.8 |
|
|
QD110/119-16-5D-CA |
11.0-11.9 |
16 |
20 |
66 |
48 |
10.8 |
|
|
QD120/129-16-5D-CA |
12.0-12.9 |
16 |
20 |
71 |
48 |
11.8 |
12-16.9 |
|
QD130/139-16-5D-CA |
13-13.9.0 |
16 |
20 |
77 |
48 |
12.8 |
|
|
QD140/149-16-5D-CA |
14.0-14.9 |
16 |
20 |
82 |
48 |
13.8 |
|
|
QD150/159-20-5D-CA |
15.0-15.9 |
20 |
25 |
88 |
50 |
14.8 |
|
|
QD160/169-20-5D-CA |
16.0-16.9 |
20 |
25 |
93 |
50 |
15.8 |
|
|
QD170/179-20-5D-CA |
17.0-17.9 |
20 |
25 |
99 |
50 |
16.8 |
17-20.9 |
|
QD180/189-25-5D-CA |
18.0-18.9 |
25 |
32 |
104 |
56 |
17.8 |
|
|
QD190/199-25-5D-CA |
19.0-19.9 |
25 |
32 |
110 |
56 |
18.8 |
|
|
QD200/209-25-5D-CA |
20.0-20.9 |
25 |
32 |
115 |
56 |
19.8 |
|
|
QD210/219-25-5D-CA |
21.0-21.9 |
25 |
32 |
121 |
56 |
20.8 |
21-26 |
|
QD220/229-25-5D-CA |
22.0-22.9 |
25 |
32 |
126 |
56 |
21.8 |
|
|
QD230/239-32-5D-CA |
23.0-23.9 |
32 |
42 |
132 |
60 |
22.8 |
|
|
QD240/249-32-5D-CA |
24.0-24.9 |
32 |
42 |
137 |
60 |
23.8 |
|
|
QD250/260-32-5D-CA |
25.0-26.0 |
32 |
42 |
143 |
60 |
24.8 |
|
