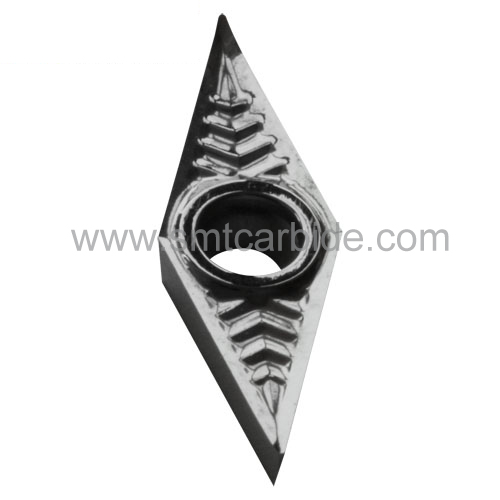

Carbide Inserts for Aluminium-VCGT1303

DESGINATION

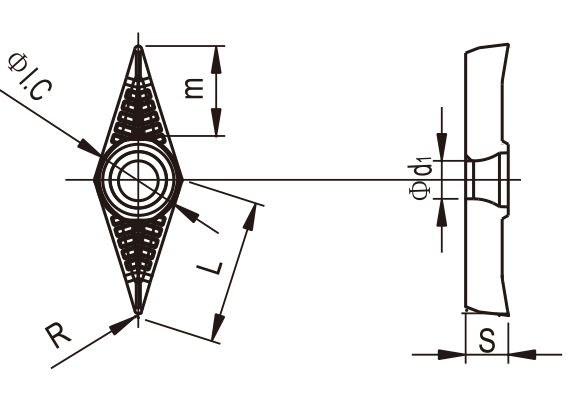

DIMENSIONS（MM）

L

ФIC

S

Фd1

R

m

  VCGT

110302-LH

11

6.35

3.18

2.80

0.2

6.92

110304-LH

0.4

6.455

110308-LH

0.2

5.525

130302-LH

13.8

7.93

3.18

3.40

0.2

8.765

130304-LH

0.4

8.3

130308-LH

0.8

7.37

160402-LH

16.60

9.525

4.76

4.40

0.2

10.614

160404-LH

0.4

10.152

160408-LH

0.8

9.229

160412-LH

1.2

8.306

220516-LH

22.1

12.70

5.56

5.5

1.6

7.383

220525-LH

2.5

8.955

220530-LH

3.0

7.79
