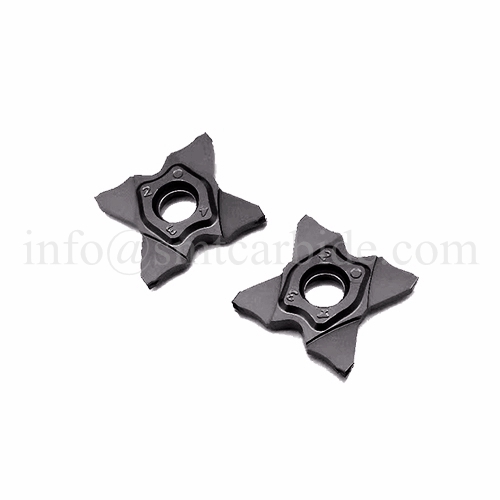

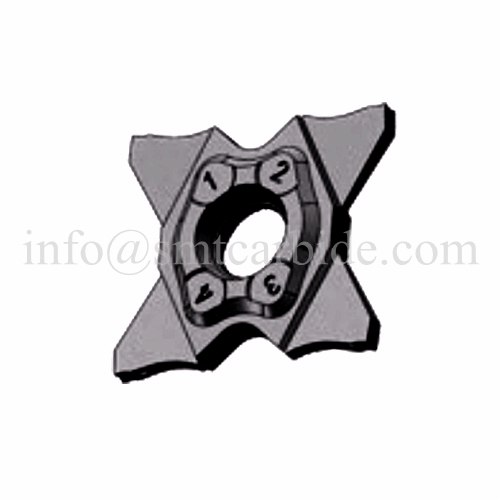

Parting and Grooving-TDG27

ITEMS

Dimensions(mm)

W

Bmax

r

IC

T

d

TDG27-1.0-0.1

1.0

3.5

0.1

27

4

5.6

TDG27-1.2-0.1

1.2

3.5

0.1

27

4

5.6

TDG27-1.25-0.1

1.25

3.5

0.1

27

4

5.6

TDG27-1.5-0.2

1.50

5.7

0.2

27

4

5.6

TDG27-1.75-0.2

1.75

5.7

0.2

27

4.

5.6

TDG27-2.0-0.2

2.0

6.4

0.2

27

4

5.6

TDG27-2.5-0.3

2.5

6.4

0.3

27

4.

5.6

TDG27-3.0-0.2

3.0

6.4

0.2

27

4

5.6

TDG27-3.0-0.4

3.0

6.4

0.4

27

4

5.6

TDG27-3.5-0.2

3.5

6.4

0.2

27

4

5.6

TDG27-4.0-0.2

4.0

6.4

0.2

27

4

5.6
