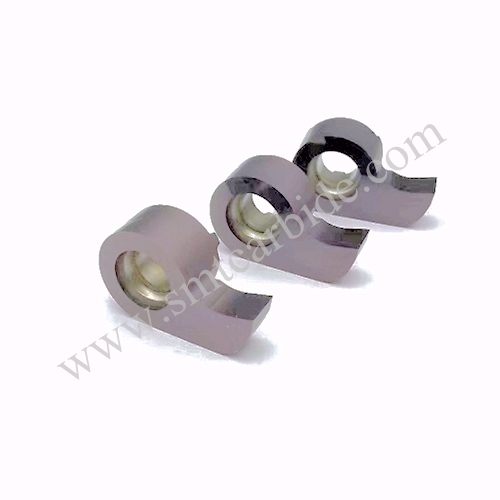

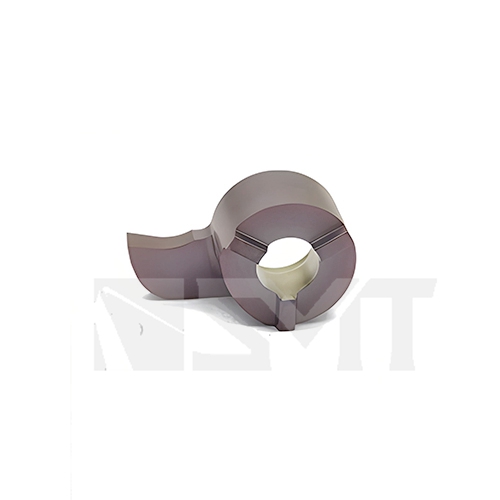

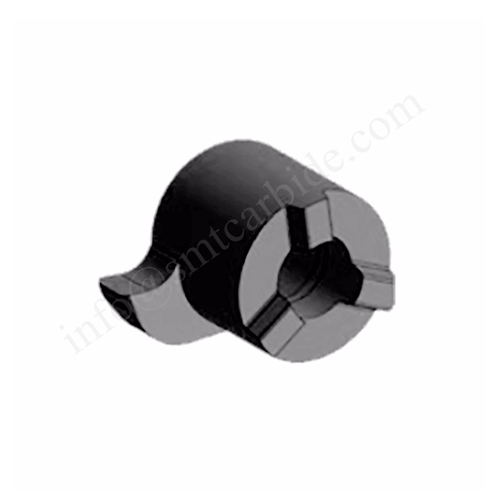

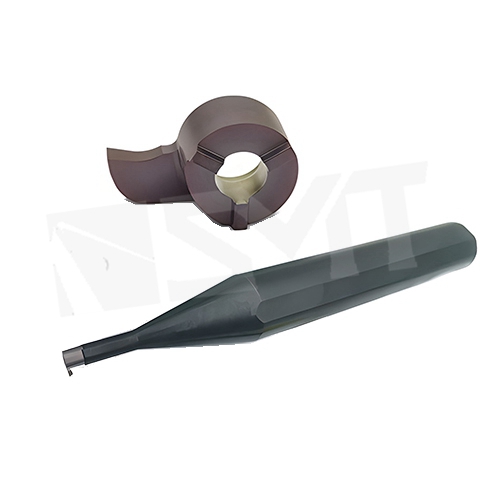

Parting and Grooving-GK

Items

Dimensions(mm)

Dmin

W

B

r

F

D

T

d

GK7R100-L1.5

7

1.0

1.5

0.1

4.1

5.2

5.2

2.7

GK7R120-L1.5

1.2

GK7R125-L1.5

1.25

GK7R150-L1.5

1.5

GK7R175-L1.5

1.75

GK7R200-L1.5

2.0

GK7R100

7.5

1.0

2

0.1

4.6

5.2

5.2

2.7

GK7R120

1.2

GK7R125

1.25

GK7R150

1.50

GK7R175

1.75

GK7R200

2.0

GK7R225

2.25

GK7R250

2.5

GK7R300

3.0
