Head-Exchangeable Drills-QD-107-RA
- item No : QD-107-RA
- Head exchangeable drills, head type RA, Head Dia. 10.7mm, PVD-TiALN for carbon steel and alloyed steel.
- Inquiry now
Detailed description

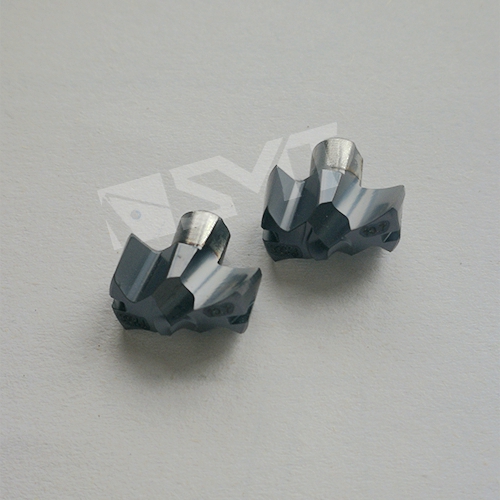

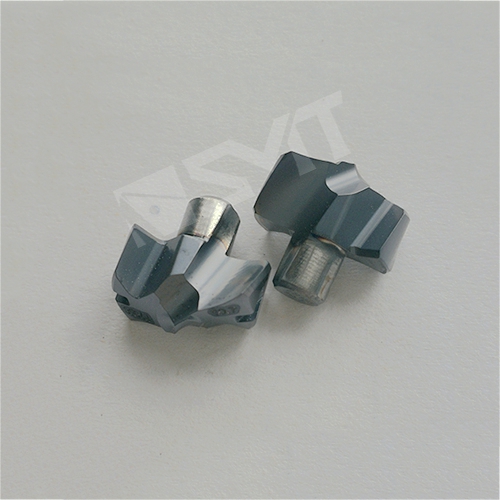

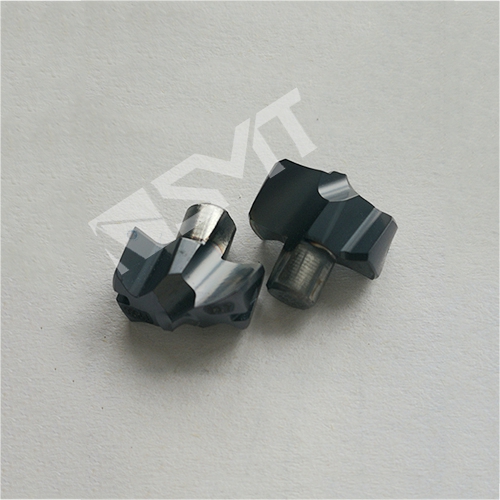

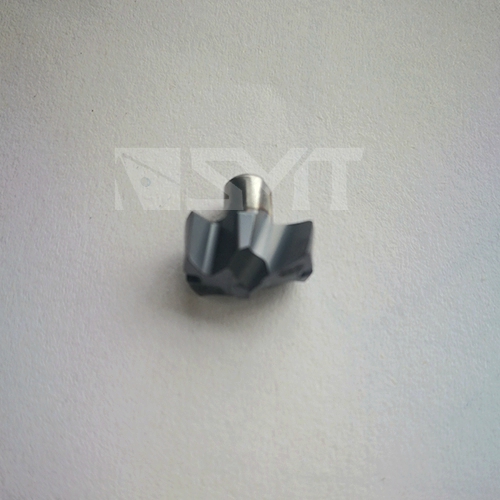

Self-locking Head-exchangeable drills- Carbide drill head-RA
- With centering function;
- Point Angle: 140°;
- Drill Diameter 8-26mm, available in 0.1mm increments;
- Drill bodies are available in L/D ratios of 1.5xD,3xD,5xD,8xD and 12xD;
- Drill bodies are highly polished, internal cooling through;
- Drill tips are in micrograin carbide grade, PVD-TiALN coating;
- Work on carbon steel, alloy steel and nodular cast iron.
|

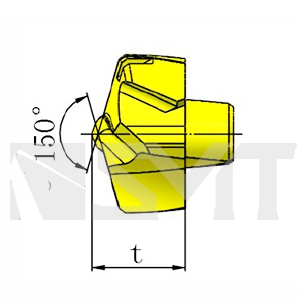

Designation |
DIMENSIONS(mm) |
Drill body |
||
|
D |
t |
|||
|
QD-100-RA |
10.0 |
6.2 |
QD100-109-16-xD-CA |
|
|
QD-101-RA |
10.1 |
6.2 |
||
|
QD-102-RA |
10.2 |
6.2 |
||
|
QD-103-RA |
10.3 |
6.2 |
||
|
QD-104-RA |
10.4 |
6.2 |
||
|
QD-105-RA |
10.5 |
6.2 |
||
|
QD-106-RA |
10.6 |
6.2 |
||
|
QD-107-RA |
10.7 |
6.2 |
||
|
QD-108-RA |
10.8 |
6.2 |
||
|
QD-109-RA |
10.9 |
6.2 |
||
