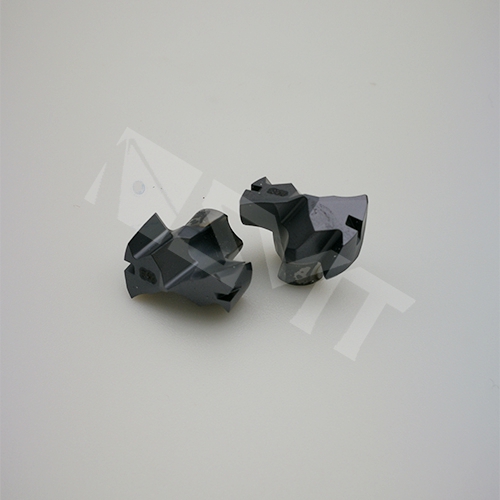

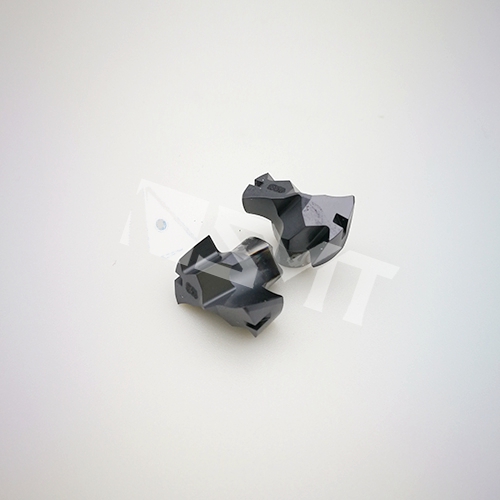

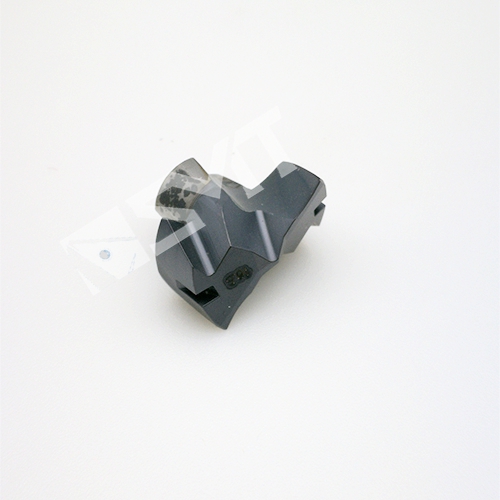

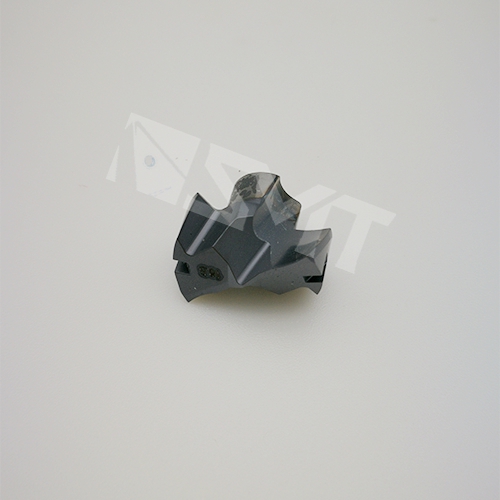

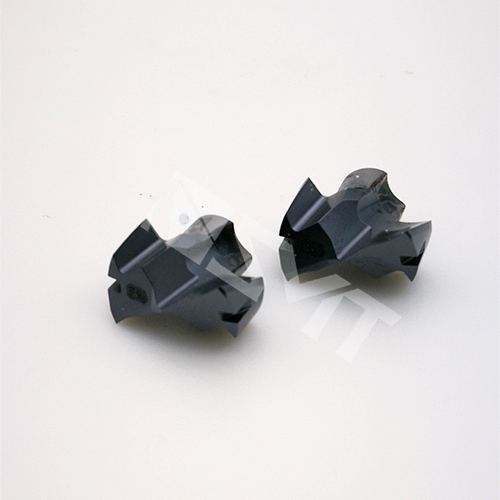

Head Exchangeable drills-QD-165-F/A
Head Exchangeable drills-QD-165-F/A Head Exchangeable drills-QD-165-F/A Head Exchangeable drills-QD-165-F/A Head Exchangeable drills-QD-165-F/A Head Exchangeable drills-QD-165-F/A

  • Head Exchangeable drills-QD-165-F/A

  • item No : QD-165-F/A
  • Head Exchangeable drills, QD-165-F/A, Drill head style-F/A, Flat-bottom, Dia.16.5mm, PVD -TIALN for carbon steel.
  • Inquiry now

Detailed description


          QD-F/A-Flat-bottom- Carbide Drill Head

  • For blind hole drilling of general steel
  • Not recommended for drilling of difficult to cut materials

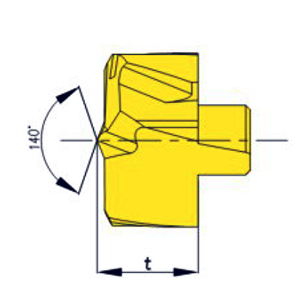

  • Point Angle: 140°
  • Diameter Range ,8-26 mm, available in 0.1mm increments
  • Drill bodies are available in1.5xD, 3xD, 5xD, 8xD and 12xD.
  •  Micro-grain carbide grade, PVD-TiAlN-coating

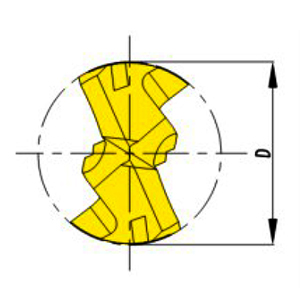

Designation

DIMENSIONS

(mm)

Drill Body

Designation

DIMENSIONS

(mm)

Drill Body

D

t

D

t

QD-080-F/A

8.0

4.0

QD080/089-12-xD-CA

QD-170-F/A

17.0

6.6

QD170/179-20-xD-CA

QD-085-F/A

8.5

4.0

QD-175-F/A

17.5

6.6

QD-090-F/A

9.0

4.2

QD090/099-12-xD-CA

QD-180-F/A

18.0

6.9

QD180/189-25-xD-CA

QD-095-F/A

9.5

4.2

QD-185-F/A

18.5

6.9

QD-100-F/A

10.0

4.4

QD100/109-16-xD-CA

QD-190-F/A

19.0

7.2

QD190/199-25-xD-CA

QD-105-F/A

10.5

4.4

QD-195-F/A

19.5

7.2

QD-110-F/A

11.0

4.5

QD110/119-16-xD-CA

QD-200-F/A

20.0

8.2

QD200/209-25-xD-CA

QD-115-F/A

11.5

4.5

QD-205-F/A

20.5

8.2

QD-120-F/A

12.0

4.8

QD120/129-16-xD-CA

QD-210-F/A

21.0

8.6

QD210/219-25-xD-CA

QD-125-F/A

12.5

4.8

QD-215-F/A

21.5

8.6

QD-130-F/A

13.0

5.1

QD130/139-16- xD-CA

QD-220-F/A

22.0

8.9

QD220/229-25-xD-CA

QD-135-F/A

13.5

5.1

QD-225-F/A

22.5

8.9

QD-140-F/A

14.0

5.5

QD140/149-16 -xD-CA

QD-230-F/A

23.0

9.3

QD230/239-32-xD-CA

QD-145-F/A

14.5

5.5

QD-235-F/A

23.5

9.3

QD-150-F/A

15.0

5.9

QD150/159-20- xD-CA

QD-240-F/A

24.0

9.7

QD240/249-32-xD-CA

QD-155-F/A

15.5

5.9

QD-245-F/A

24.5

9.7

QD-160-F/A

16.0

6.3

QD160/169-20-xD-CA

QD-250-F/A

25.0

10.1

QD250/260-32-xD-CA

QD-165-F/A

16.5

6.3

QD-255-F/A

25.5

10.1

QD-260-F/A

26.0

10.1
