Head-Exchangeable Drills-QD190-199-25-5D-CA
Head-Exchangeable Drills-QD190-199-25-5D-CA Head-Exchangeable Drills-QD190-199-25-5D-CA Head-Exchangeable Drills-QD190-199-25-5D-CA Head-Exchangeable Drills-QD190-199-25-5D-CA Head-Exchangeable Drills-QD190-199-25-5D-CA
  • Head-Exchangeable Drills-QD190-199-25-5D-CA

  • item No : QD190-199-25-5D-CA

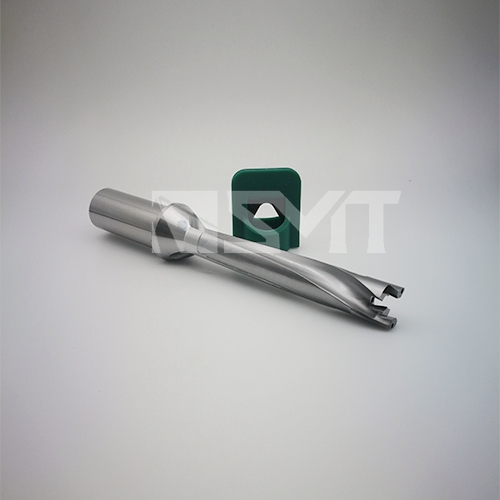

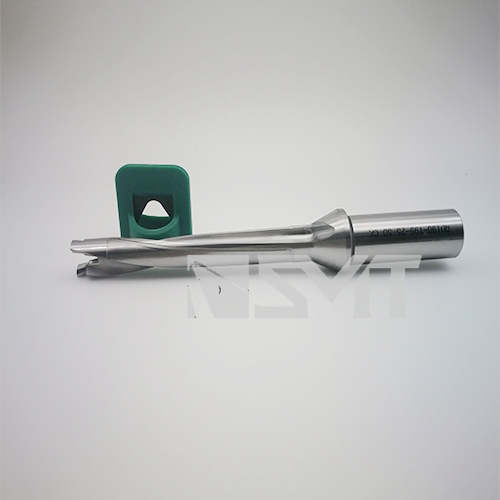

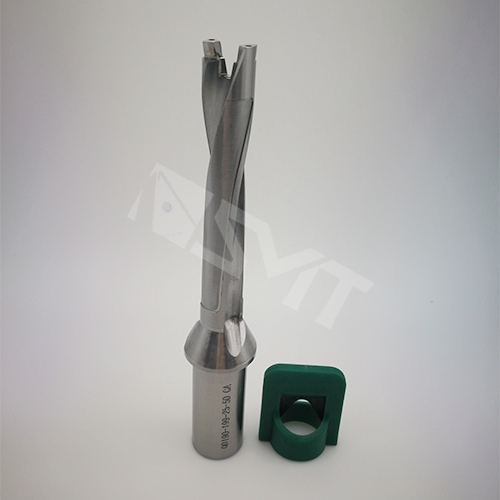

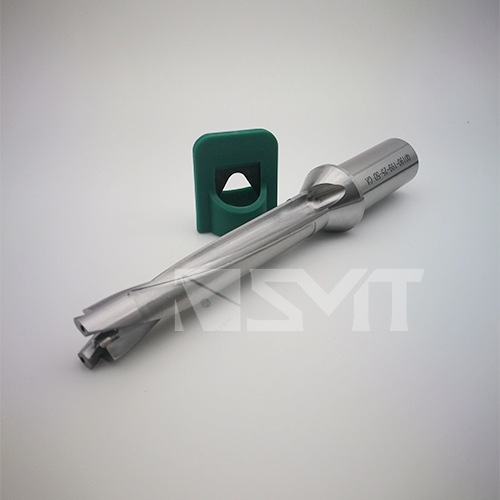

  • Head Exchangeable Drill Body, QD190-199-25-5D-CA, shank D25, 5xD, with internal coolant channel, for head size 19.0-19.9, for head type QD-RA,QD-RB, QD-F, QD-S1/A,QD-S2/A,and QD-C.
  • Inquiry now

Detailed description



           QD- drill Body-5xD

          -L/D Ratio: 5xD

         - Highly polished, with internal coolant holes.

         - Qdrill bodies available with shank diameters 12mm,16mm, 20mm, 25mm and  32mm.

          - 6 types of heads available: RA, RB, S1/A, S2/A, F and C.


Designation

Head Dia. (mm)

Dimensions(mm)

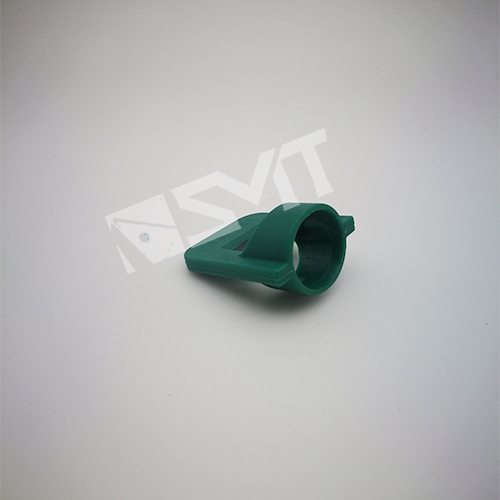

Wrench

d

D3

L1

Ls

D

QD080/089-12-5D-CA

8.0-8.9

12

16

50

45

7.8

8-11.9

QD090/099-12-5D-CA

9.0-9.9

12

16

55

45

8.8

QD100/109-16-5D-CA

10.0-10.9

16

20

60

48

9.8

QD110/119-16-5D-CA

11.0-11.9

16

20

66

48

10.8

QD120/129-16-5D-CA

12.0-12.9

16

20

71

48

11.8

12-16.9

QD130/139-16-5D-CA

13-13.9.0

16

20

77

48

12.8

QD140/149-16-5D-CA

14.0-14.9

16

20

82

48

13.8

QD150/159-20-5D-CA

15.0-15.9

20

25

88

50

14.8

QD160/169-20-5D-CA

16.0-16.9

20

25

93

50

15.8

QD170/179-20-5D-CA

17.0-17.9

20

25

99

50

16.8

17-20.9

QD180/189-25-5D-CA

18.0-18.9

25

32

104

56

17.8

QD190/199-25-5D-CA

19.0-19.9

25

32

110

56

18.8

QD200/209-25-5D-CA

20.0-20.9

25

32

115

56

19.8

QD210/219-25-5D-CA

21.0-21.9

25

32

121

56

20.8

21-26

QD220/229-25-5D-CA

22.0-22.9

25

32

126

56

21.8

QD230/239-32-5D-CA

23.0-23.9

32

42

132

60

22.8

QD240/249-32-5D-CA

24.0-24.9

32

42

137

60

23.8

QD250/260-32-5D-CA

25.0-26.0

32

42

143

60

24.8
