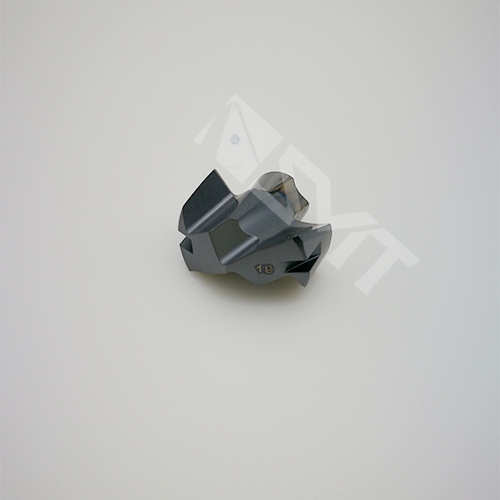

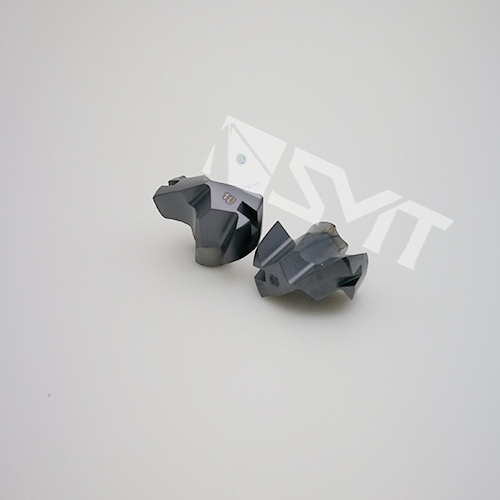

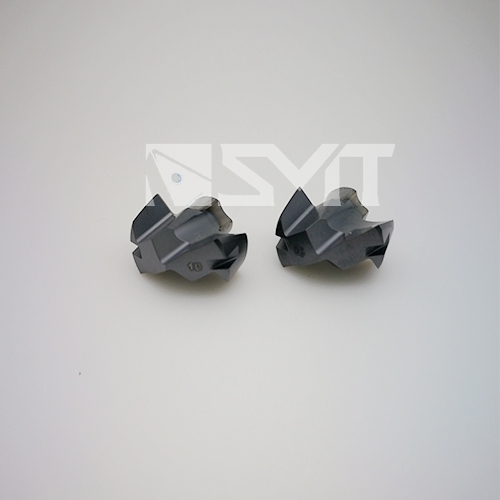

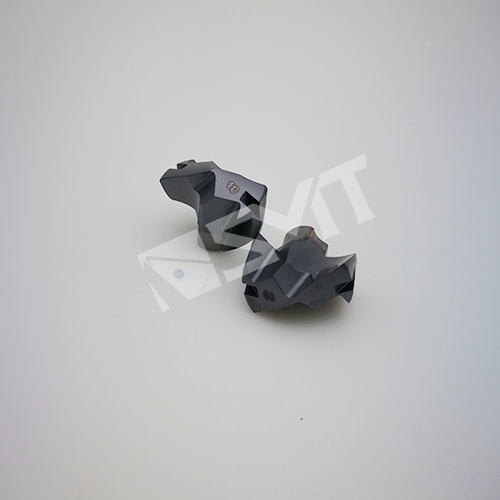

Head Exchangeable drills-QD-190-S1/A
- item No : QD-190-S1/A
- Head Exchangeable drills, QD-190-S1/A, Drill head Style -S1/A, Dia.19.0mm, PVD -TIALN for carbon steel.
- Inquiry now
Detailed description
Head Exchangeable Drill head
QD-S1/A
- Drill diameter 8-26 mm, available in 0.1mm increments

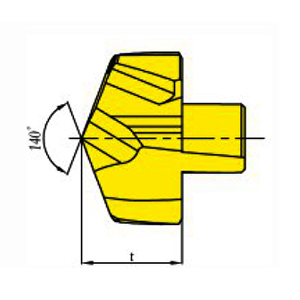

- Point angle: 140°
- Cutter bodies are available in 1.5xD,3xD,5xD,8xD and 12xD
- Work on medium-high carbon steel, alloyed steel, nodular cast iron
- Micro-grain carbide grade, PVD-TIALN coating
|

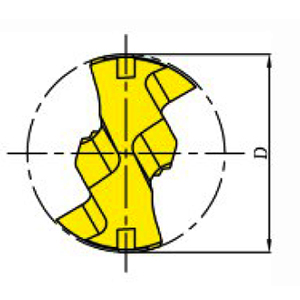

Designation |
Dimensions(mm) |
Drill Body |
|
|
D |
t |
||
|
QD-190-S1/A |
19.0 |
11.0 |
QD190/199-25-xD-CA |
|
QD-191-S1/A |
19.1 |
11.0 |
|
|
QD-192-S1/A |
19.2 |
11.0 |
|
|
QD-193-S1/A |
19.3 |
11.0 |
|
|
QD-194-S1/A |
19.4 |
11.0 |
|
|
QD-195-S1/A |
19.5 |
11.0 |
|
|
QD-196-S1/A |
19.6 |
11.0 |
|
|
QD-197-S1/A |
19.7 |
11.0 |
|
|
QD-198-S1/A |
19.8 |
11.0 |
|
|
QD-199-S1/A |
19.9 |
11.0 |
|
